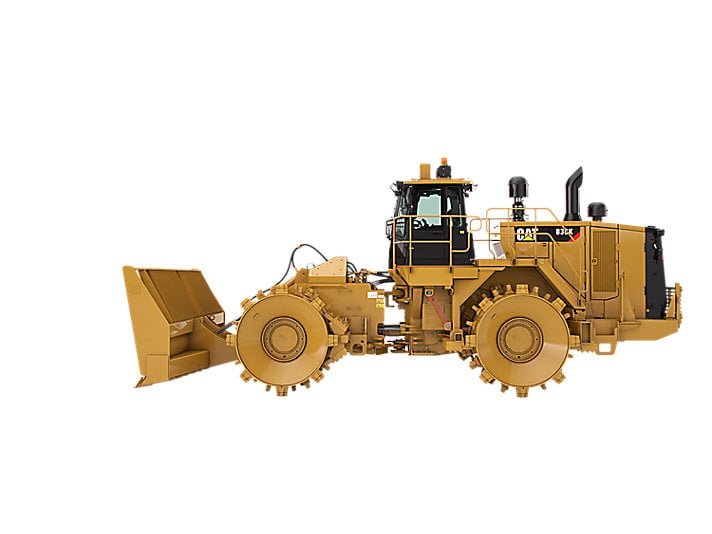

Caterpillar 836K

Series: Caterpillar Compactor

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar 836K belongs to the Caterpillar Compactor series. The engine delivers 569.8 hp (369.9 kW), with a displacement of 18,099.5 cm³. Torque is 3,084.5 Nm. The unladen weight is 55,936.6 kg. The wheelbase measures 4,550.7 mm. Ground clearance is 630.9 mm. The tank holds 791.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. The hydraulic tank holds 238.5 litres. The cooling system holds 106 litres. The engine fitted is the Cat C18 ACERT. The Caterpillar Compactor series covers 31 models. Rated output within it ranges from 22.8 to 569.8 hp; the 836K sits at the top of that range with 569.8 hp. Its immediate neighbours are the 836H below it with 530.3 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Road construction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat C18 ACERTcorrect
Power569.8 hp (369.9 kW)correct
Torque3,084.5correct
Displacement18,099.5 cm³correct
Coolant capacity106 lcorrect

Dimensions and weights

Wheelbase4,550.7correct
Ground clearance630.9correct
Unladen weight55,936.6 kgcorrect

Drivetrain and chassis

Gearbox typePlanetary - powershift transmission - ECPCcorrect
Forward gears4correct
Reverse gears4correct

Working data

Hydraulic oil capacity238.5 lcorrect
Fuel tank capacity791.2 lcorrect

Other data

Height4,654.3correct

Where this model stands

Power-to-weight ratio: 6.6 kW/t (370 kW / 55.9 t)

Stronger than 97% of the compaction equipment in the register — out of 223 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 836K have?

The Caterpillar 836K delivers 570 hp.

How much does the Caterpillar 836K weigh?

The unladen weight is 55,937 kg.

What engine does the Caterpillar 836K have?

18,100 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
