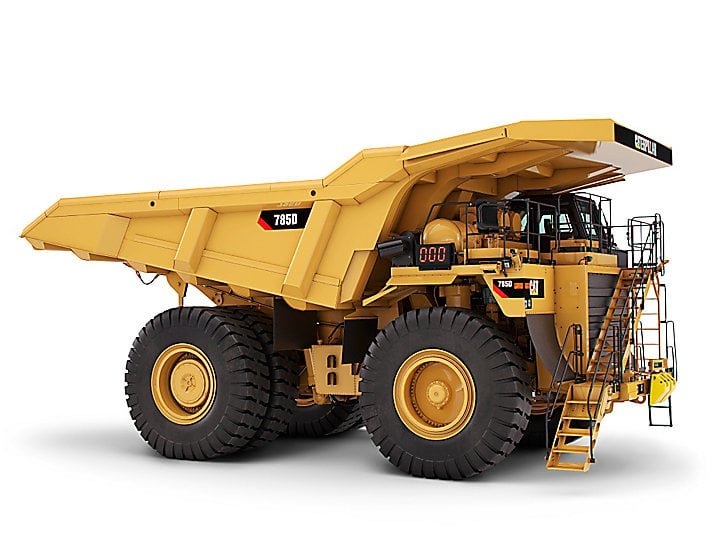

Caterpillar 785D

Series: Caterpillar Rock Truck

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar 785D is a model in the Caterpillar Rock Truck series. The engine delivers 1,470.1 hp (1,005.2 kW), with a displacement of 58,560.8 cm³. Rated speed is 1,750 rpm. The wheelbase measures 5,181.6 mm. Ground clearance is 987.6 mm. Top speed is 54.7 km/h. The tank holds 1,893.1 litres. The hydraulic tank holds 337.3 litres. The cooling system holds 379.3 litres. The oil fill is 204 litres. The engine fitted is the Cat 3512C HD. Tyre size: 33,00-51 50PR (E3 & E4). The Caterpillar Rock Truck series covers 29 models. Rated output within it ranges from 480.6 to 3,599.2 hp; the 785D sits in the lower part of that range with 1,470.1 hp. Its immediate neighbours are the 785 below it with 1,399.1 hp and the 785C above it with 1,471.1 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Mining equipment. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat 3512C HDcorrect
Power1,470.1 hp (1,005.2 kW)correct
Rated speed1,750 rpmcorrect
Displacement58,560.8 cm³correct
Coolant capacity379.3 lcorrect
Engine oil capacity204 lcorrect

Dimensions and weights

Length11,548.9correct
Wheelbase5,181.6correct
Ground clearance987.6correct

Drivetrain and chassis

Tyre size33.00-51 50PR (E3 & E4)correct
Top speed54.7 km/hcorrect

Working data

Hydraulic oil capacity337.3 lcorrect
Fuel tank capacity1,893.1 lcorrect

Frequently asked questions

How much power does the Caterpillar 785D have?

The Caterpillar 785D delivers 1,470 hp.

What engine does the Caterpillar 785D have?

58,561 cm³ displacement.

How fast does the Caterpillar 785D go?

Top speed is 54.7 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
