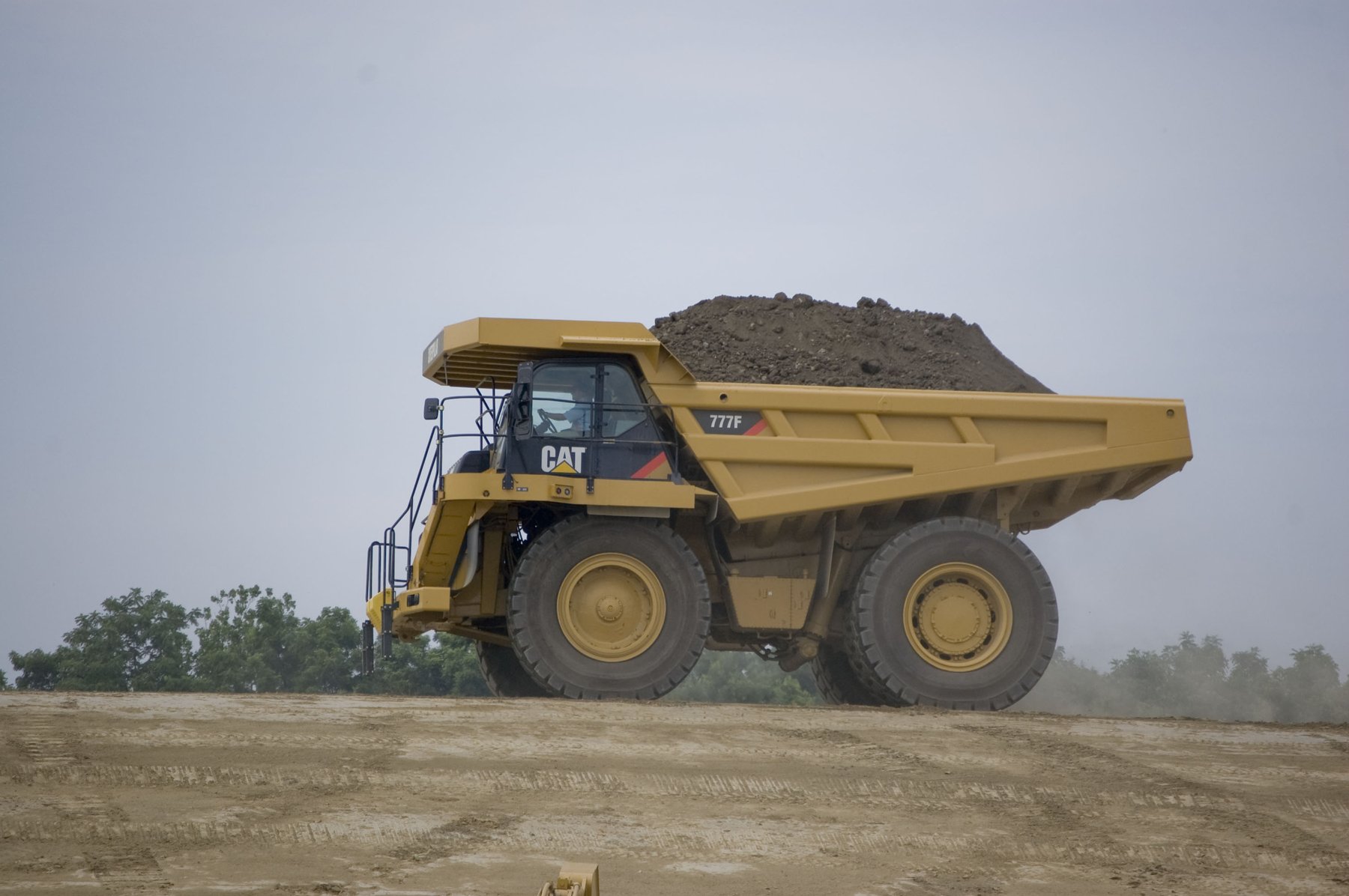

Caterpillar 777F

Series: Caterpillar Rock Truck

Source: https://commons.wikimedia.org/w/index.php?curid=5154754

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 777F from Caterpillar is part of the Caterpillar Rock Truck series. The engine delivers 1,030.1 hp (700.2 kW), has 12 cylinders, with a displacement of 32,102.3 cm³. Torque is 4,715.5 Nm. The wheelbase measures 4,559.8 mm. Ground clearance is 893.1 mm. Top speed is 64.5 km/h. The tank holds 1,135.6 litres. The hydraulic tank holds 189.3 litres. The cooling system holds 230.9 litres. The engine fitted is the Cat C32 ACERT. Tyre size: 27,00R49(E4). The Caterpillar Rock Truck series covers 29 models. Rated output within it ranges from 480.6 to 3,599.2 hp; the 777F sits in the lower part of that range with 1,030.1 hp. Its immediate neighbours are the 777D below it with 1,013.9 hp and the 785 above it with 1,399.1 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Mining equipment. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat C32 ACERTcorrect
Power1,030.1 hp (700.2 kW)correct
Torque4,715.5correct
Cylinders12correct
Displacement32,102.3 cm³correct
Aspirationturbochargedcorrect
Coolant capacity230.9 lcorrect

Dimensions and weights

Length10,533.9correct
Wheelbase4,559.8correct
Ground clearance893.1correct

Drivetrain and chassis

Gearbox typeSeven-speed planetary power shiftcorrect
Tyre size27.00R49(E4)correct
Top speed64.5 km/hcorrect

Working data

Hydraulic oil capacity189.3 lcorrect
Fuel tank capacity1,135.6 lcorrect

Frequently asked questions

How much power does the Caterpillar 777F have?

The Caterpillar 777F delivers 1,030 hp.

What engine does the Caterpillar 777F have?

12 cylinders, 32,102 cm³ displacement.

How fast does the Caterpillar 777F go?

Top speed is 64.5 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
