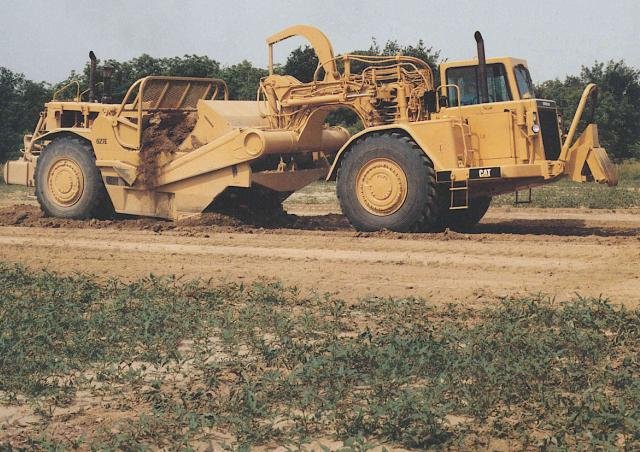

Caterpillar 627E

Series: Caterpillar Motor Scraper

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar 627E is a model in the Caterpillar Motor Scraper series. The engine delivers 249.4 hp (167.8 kW), with a displacement of 10,500.8 cm³. Rated speed is 2,200 rpm. The machine is 12,890 mm long. The wheelbase measures 7,684 mm. The tank holds 790 litres. The gearbox has 8 forward gears. There are also 1 reverse gears. The hydraulic tank holds 195.3 litres. The cooling system holds 139.3 litres. The electrical system runs on 24 V. Tyre size: 33,25-29 26PR (E-3). The Caterpillar Motor Scraper series covers 29 models. Rated output within it ranges from 189.6 to 557.6 hp; the 627E sits in the lower part of that range with 249.4 hp. Its immediate neighbours are the 613C Series II below it with 189.6 hp and the 637E above it with 253.5 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Mining equipment. 16 verified figures from 1 source are on file.

Technical data

Engine

Power249.4 hp (167.8 kW)correct
Rated speed2,200 rpmcorrect
Displacement10,500.8 cm³correct
Aspirationturbochargedcorrect
Coolant capacity139.3 lcorrect

Dimensions and weights

Length12,890correct
Width3,468.6correct
Wheelbase7,684correct

Drivetrain and chassis

Forward gears8correct
Reverse gears1correct
Tyre size33.25-29 26PR (E-3)correct
System voltage24 Vcorrect

Working data

Hydraulic oil capacity195.3 lcorrect
Fuel tank capacity790 lcorrect

Other data

Height3,368correct

Frequently asked questions

How much power does the Caterpillar 627E have?

The Caterpillar 627E delivers 249 hp.

What engine does the Caterpillar 627E have?

10,501 cm³ displacement.

What are the dimensions of the Caterpillar 627E?

12,890 mm × 3,469 mm.
