Start › Forestry equipment › Caterpillar › 515

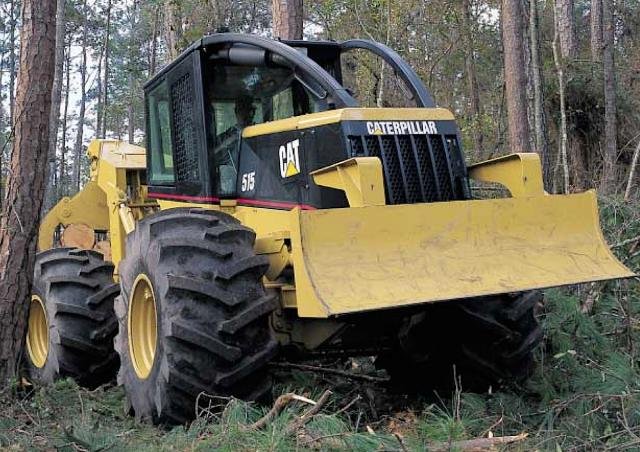

Caterpillar 515

Series: Caterpillar Skidder

Source: https://www.lectura-specs.com/en/model/municipal-technology/
The Caterpillar 515 is a model in the Caterpillar Skidder series. The engine delivers 154.1 hp (104.4 kW), has 4 cylinders, with a displacement of 6,964.5 cm³. Rated speed is 2,200 rpm. The unladen weight is 12,700 kg. The wheelbase measures 3,301 mm. Ground clearance is 518.2 mm. The tank holds 185.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The hydraulic tank holds 75.3 litres. Working pressure is 206.8 bar. The cooling system holds 36.3 litres. The oil fill is 19.3 litres. The engine fitted is the Cat 3304 DIT Diesel. Tyre size: 23,1-26. The Caterpillar Skidder series covers 20 models. Rated output within it ranges from 96.3 to 1,217.7 hp; the 515 sits at the bottom of that range with 154.1 hp. Its immediate neighbours are the 527 Grapple below it with 152.1 hp and the 527 above it with 168.3 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Forestry equipment. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat 3304 DIT Dieselcorrect
Power154.1 hp (104.4 kW)correct
Rated speed2,200 rpmcorrect
Cylinders4correct
Displacement6,964.5 cm³correct
Aspirationturbochargedcorrect
Coolant capacity36.3 lcorrect
Engine oil capacity19.3 lcorrect

Dimensions and weights

Length5,800 mmcorrect
Width2,724.9correct
Wheelbase3,301correct
Ground clearance518.2correct
Unladen weight12,700 kgcorrect

Drivetrain and chassis

Forward gears4correct
Reverse gears3correct
Tyre size23.1-26correct

Working data

Hydraulic oil capacity75.3 lcorrect
Hydraulic pressure206.8correct
Fuel tank capacity185.1 lcorrect

Other data

Cab height3,032.8correct

Where this model stands

Power-to-weight ratio: 8.2 kW/t (104 kW / 12.7 t)

Stronger than 19% of the forestry equipment in the register — out of 111 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 515 have?

The Caterpillar 515 delivers 154 hp.

How much does the Caterpillar 515 weigh?

The unladen weight is 12,700 kg.

What engine does the Caterpillar 515 have?

4 cylinders, 6,964 cm³ displacement.

What are the dimensions of the Caterpillar 515?

5,800 mm × 2,725 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
