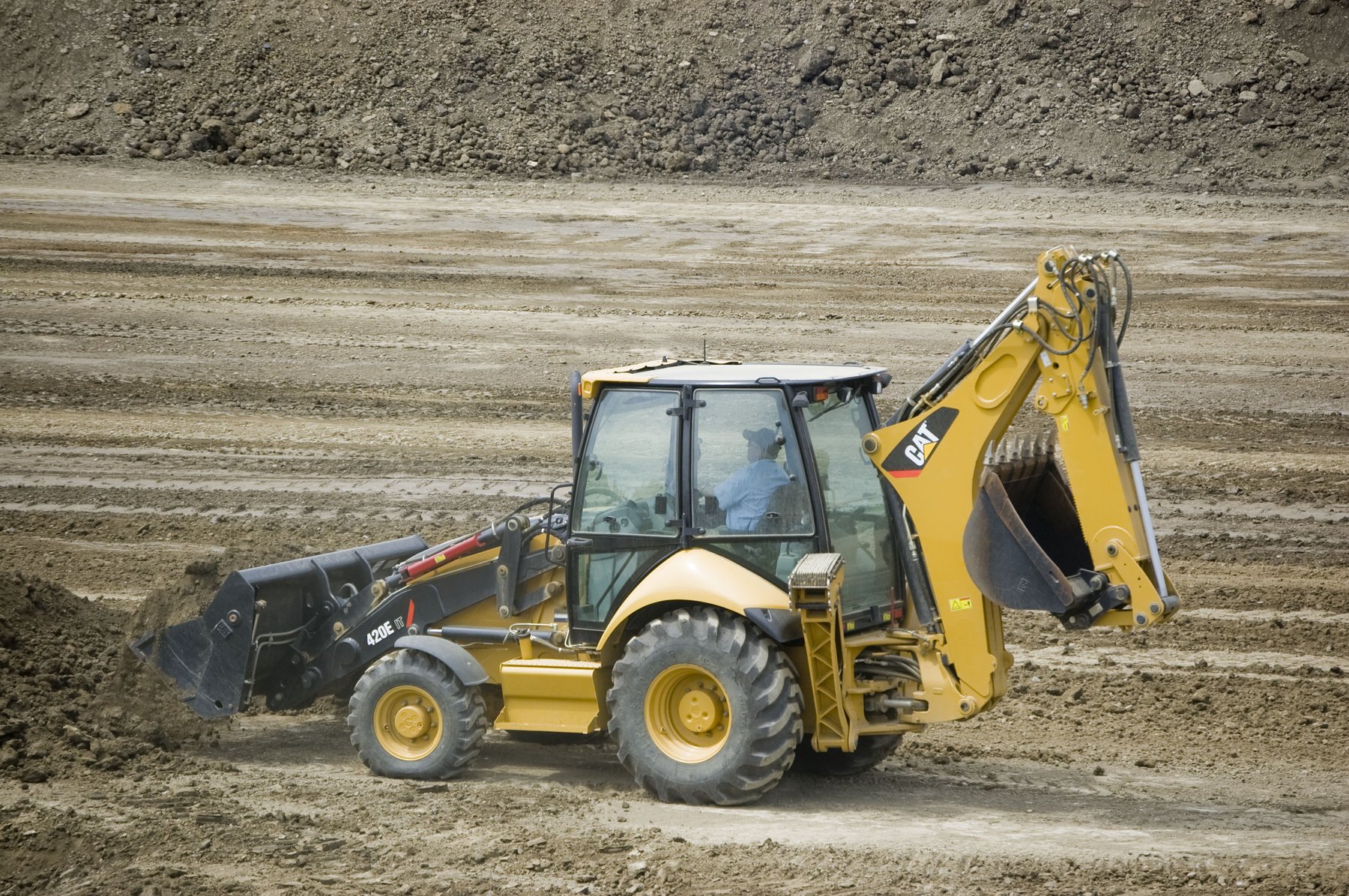

Caterpillar 420E

Series: Caterpillar Loader Backhoe

Source: https://commons.wikimedia.org/w/index.php?curid=6104060 upl

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar 420E belongs to the Caterpillar Loader Backhoe series. The engine delivers 102.4 hp (69.4 kW), with a displacement of 4,391.7 cm³. Rated speed is 2,200 rpm. The wheelbase measures 2,209.8 mm. Ground clearance is 320 mm. The tank holds 143.8 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 162.8 l/min. The hydraulic tank holds 79.1 litres. Working pressure is 249 bar. The cooling system holds 16.7 litres. The electrical system runs on 12 V. The engine fitted is the C4,4 DIT. The Caterpillar Loader Backhoe series covers 36 models. Rated output within it ranges from 68 to 138.9 hp; the 420E sits in the middle of that range with 102.4 hp. Its immediate neighbours are the 442D below it with 99.4 hp and the 420F IT above it with 103.4 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Wheel loaders. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelC4.4 DITcorrect
Power102.4 hp (69.4 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Displacement4,391.7 cm³correct
Coolant capacity16.7 lcorrect

Dimensions and weights

Wheelbase2,209.8correct
Ground clearance320correct

Drivetrain and chassis

Forward gears4correct
Reverse gears4correct
System voltage12 Vcorrect

Working data

Pump flow162.8 l/mincorrect
Hydraulic oil capacity79.1 lcorrect
Hydraulic pressure249correct
Fuel tank capacity143.8 lcorrect

Frequently asked questions

How much power does the Caterpillar 420E have?

The Caterpillar 420E delivers 102 hp.

What engine does the Caterpillar 420E have?

4,392 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
