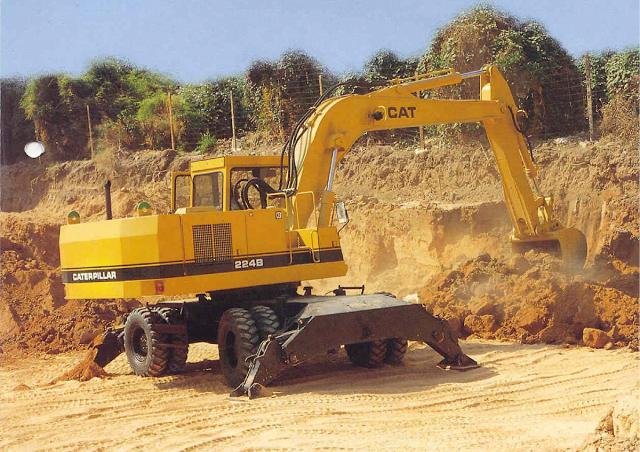

Caterpillar 224B

Series: Caterpillar Mobile Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 224B from Caterpillar is part of the Caterpillar Mobile Excavator series. The engine delivers 136.9 hp (100.7 kW), with a displacement of 6,600.7 cm³. The wheelbase measures 2,752.3 mm. Ground clearance is 341.4 mm. The tank holds 330.1 litres. The pump delivers 330.1 l/min. The hydraulic tank holds 390.3 litres. Working pressure is 320 bar. The engine fitted is the 3,116. Tyre size: dual 10,00-20 12PR. The Caterpillar Mobile Excavator series covers 23 models. Rated output within it ranges from 72.1 to 176.4 hp; the 224B sits in the upper part of that range with 136.9 hp. Its immediate neighbours are the M315 below it with 123.6 hp and the M313D above it with 138.9 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Excavators & compaction. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine model3,116correct
Power136.9 hp (100.7 kW)correct
Displacement6,600.7 cm³correct

Dimensions and weights

Wheelbase2,752.3correct
Ground clearance341.4correct

Drivetrain and chassis

Tyre sizedual 10.00-20 12PRcorrect

Working data

Pump flow330.1 l/mincorrect
Hydraulic oil capacity390.3 lcorrect
Hydraulic pressure320 barcorrect
Fuel tank capacity330.1 lcorrect

Other data

Height3,191.3correct

Frequently asked questions

How much power does the Caterpillar 224B have?

The Caterpillar 224B delivers 137 hp.

What engine does the Caterpillar 224B have?

6,601 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
