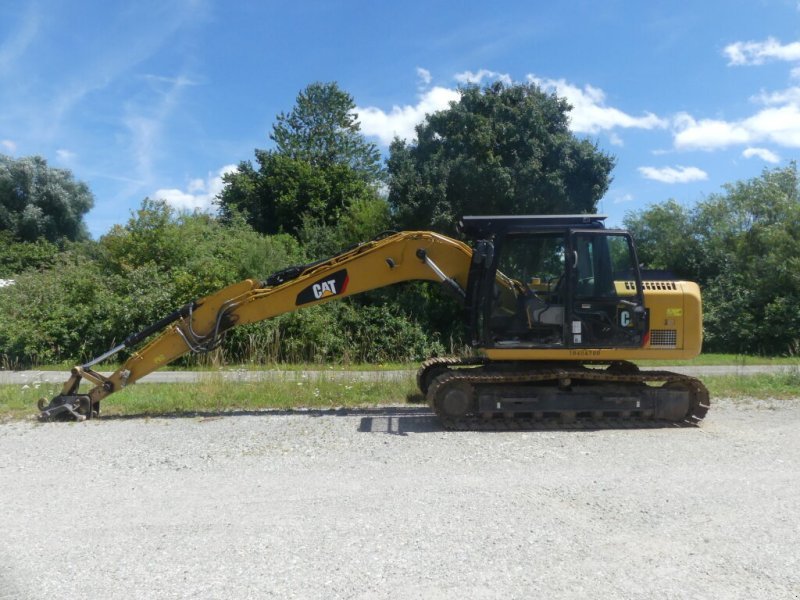

Caterpillar 213 LC

Series: Caterpillar Hydraulic Excavator

Source: https://www.technikboerse.com/gebraucht/bagger-789/caterpill

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 213 LC, Caterpillar offers a model from the Caterpillar Hydraulic Excavator series. The engine delivers 76.1 kW, has 6 cylinders, with a displacement of 5,801 cm³. Rated speed is 2,150 rpm. The unladen weight is 17,300 kg. Ground clearance is 429.8 mm. The tank holds 200.2 litres. The pump delivers 170.3 l/min. The hydraulic tank holds 320.2 litres. Working pressure is 300 bar. The cooling system holds 30.3 litres. The oil fill is 17.8 litres. The electrical system runs on 24 V. The engine fitted is the 6,354,4P. The Caterpillar Hydraulic Excavator series covers 134 models. Rated output within it ranges from 30.1 to 1,096.2 kW; the 213 LC sits at the bottom of that range with 76.1 kW. Its immediate neighbours are the 315B L below it with 73.8 kW and the 215B above it with 78 kW. 1091 Caterpillar models across 47 series are on record. The model is listed under Excavators & compaction. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine model6.354.4Pcorrect
Power76.1 kWcorrect
Rated speed2,150 rpmcorrect
Cylinders6correct
Displacement5,801 cm³correct
Aspirationnaturally aspiratedcorrect
Coolant capacity30.3 lcorrect
Engine oil capacity17.8 lcorrect

Dimensions and weights

Ground clearance429.8correct
Unladen weight17,300 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow170.3 l/mincorrect
Hydraulic oil capacity320.2 lcorrect
Hydraulic pressure300 barcorrect
Fuel tank capacity200.2 lcorrect

Other data

Height2,947.4correct

Where this model stands

Power-to-weight ratio: 4.4 kW/t (76 kW / 17.3 t)

Stronger than 29% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 213 LC have?

The Caterpillar 213 LC delivers 76.1 kW.

How much does the Caterpillar 213 LC weigh?

The unladen weight is 17,300 kg.

What engine does the Caterpillar 213 LC have?

6 cylinders, 5,801 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
