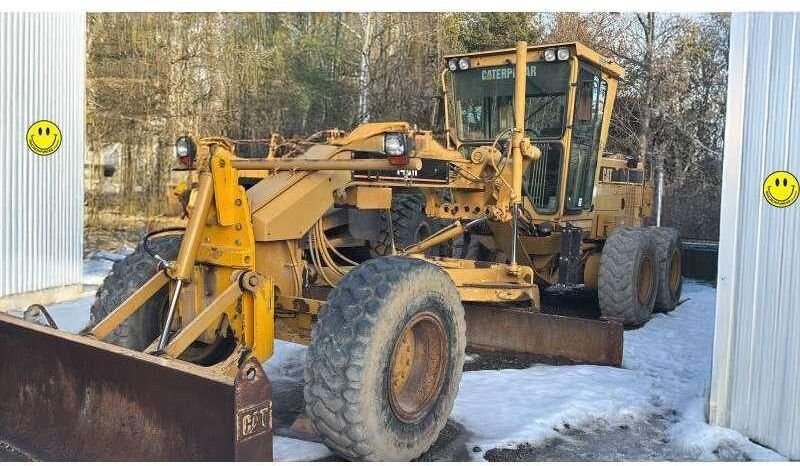

Caterpillar 14H ES

Series: Caterpillar Motor Grader

Source: https://www.truck1.eu/construction-machinery/graders/caterpi

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar Motor Grader series from Caterpillar includes the 14H ES. The engine delivers 218 hp, with a displacement of 10,450 cm³. The wheelbase measures 6,461.8 mm. The tank holds 379.3 litres. The hydraulic tank holds 125.3 litres. Working pressure is 241.3 bar. The electrical system runs on 24 V. The engine fitted is the 3306 DITA. Tyre size: 16-24 12PR (G-2). The Caterpillar Motor Grader series covers 37 models. Rated output within it ranges from 126.7 to 540.4 hp; the 14H ES sits in the lower part of that range with 218 hp. Its immediate neighbours are the 160M below it with 216 hp and the 163H above it with 223.1 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Motor graders. 10 verified figures from 1 source are on file.

Technical data

Engine

Engine model3306 DITAcorrect
Power218 hpcorrect
Displacement10,450 cm³correct

Dimensions and weights

Length9,211.1correct
Wheelbase6,461.8correct

Drivetrain and chassis

Tyre size16-24 12PR (G-2)correct
Turning radius7,920 mmcorrect

Working data

Hydraulic oil capacity125.3 lcorrect
Hydraulic pressure241.3correct
Fuel tank capacity379.3 lcorrect

Other data

System voltage24 Vcorrect

Frequently asked questions

How much power does the Caterpillar 14H ES have?

The Caterpillar 14H ES delivers 218 hp.

What engine does the Caterpillar 14H ES have?

10,450 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
