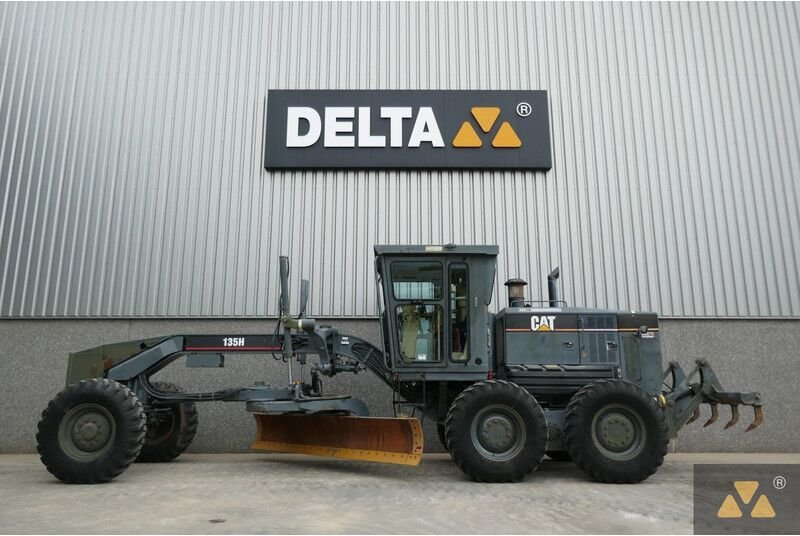

Caterpillar 135H

Series: Caterpillar Motor Grader

Source: https://www.truck1.eu/construction-machinery/graders/caterpi

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar Motor Grader series from Caterpillar includes the 135H. The engine delivers 157.1 hp, has 6 cylinders, with a displacement of 7,193.9 cm³. Rated speed is 2,000 rpm. The wheelbase measures 5,925.3 mm. Ground clearance is 609.6 mm. The tank holds 340.7 litres. Maximum torque is reached at 1,000 rpm. The hydraulic tank holds 67 litres. Working pressure is 241.3 bar. The cooling system holds 39.4 litres. The electrical system runs on 24 V. The engine fitted is the 3126B DITA ATAAC VHP. The Caterpillar Motor Grader series covers 37 models. Rated output within it ranges from 126.7 to 540.4 hp; the 135H sits at the bottom of that range with 157.1 hp. Its immediate neighbours are the 140B below it with 152.3 hp and the 12H above it with 167.3 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Motor graders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine model3126B DITA ATAAC VHPcorrect
Power157.1 hpcorrect
Rated speed2,000 rpmcorrect
Speed at max. torque1,000 rpmcorrect
Cylinders6correct
Displacement7,193.9 cm³correct
Coolant capacity39.4 lcorrect

Dimensions and weights

Length10,064.5correct
Wheelbase5,925.3correct
Ground clearance609.6correct

Drivetrain and chassis

Gearbox typedirect drive, powershift transmissioncorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity67 lcorrect
Hydraulic pressure241.3correct
Fuel tank capacity340.7 lcorrect

Frequently asked questions

How much power does the Caterpillar 135H have?

The Caterpillar 135H delivers 157 hp.

What engine does the Caterpillar 135H have?

6 cylinders, 7,194 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
