Start › Skid steer loaders › Case › SV185

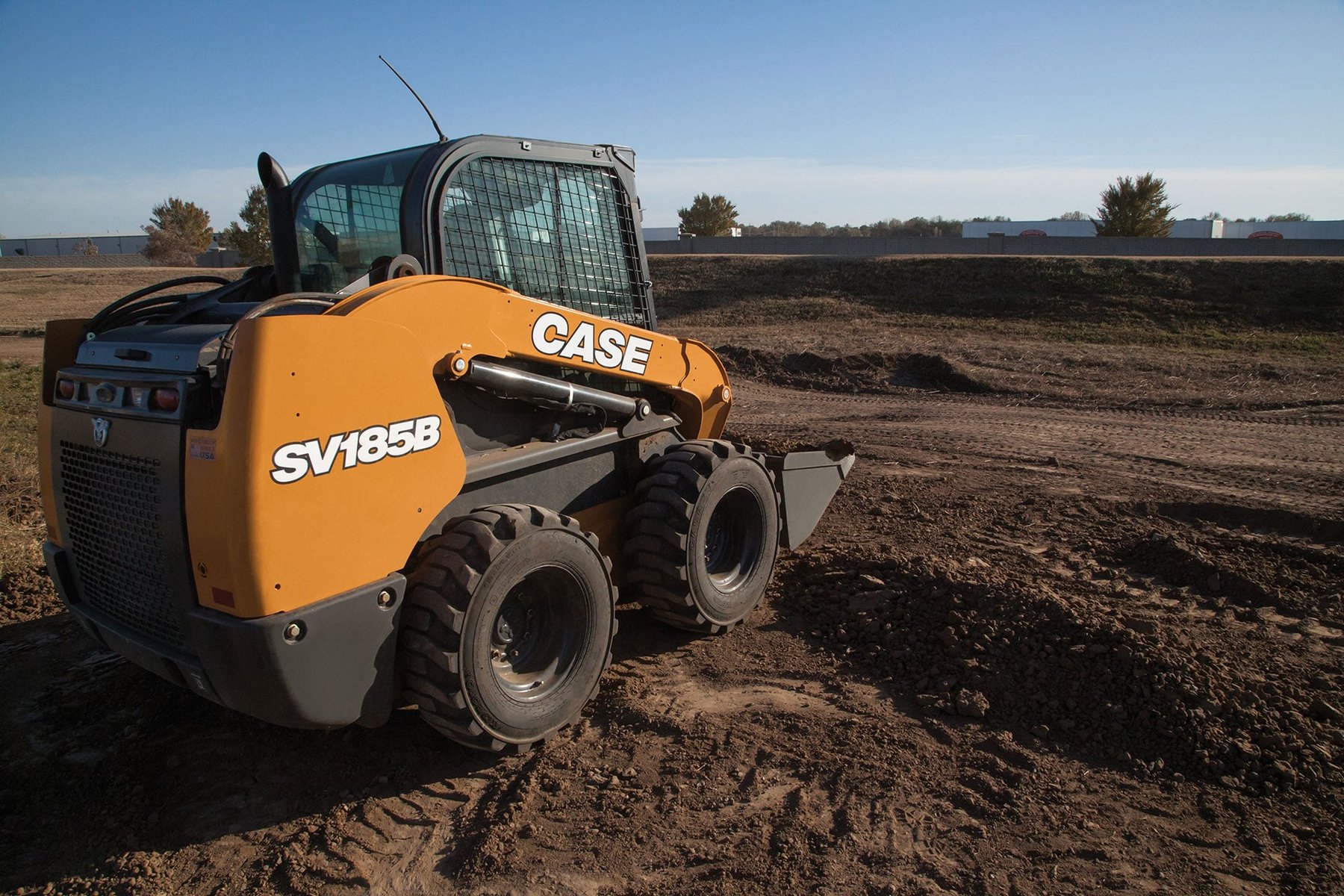

Case SV185

Series: Case Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case SV185 belongs to the Case Skid Steer Loader series. The engine delivers 60.8 hp (42.5 kW), has 4 cylinders, with a displacement of 2,212.3 cm³. Torque is 170.8 Nm. Rated speed is 2,900 rpm. The wheelbase measures 1,130.8 mm. Ground clearance is 177.8 mm. Top speed is 18.5 km/h. The tank holds 75.7 litres. Maximum torque is reached at 1,800 rpm. The pump delivers 36.3 l/min. The hydraulic tank holds 16.3 litres. Working pressure is 206.8 bar. The electrical system runs on 12 V. The engine fitted is the ISM N844T/M3. Tyre size: 10 x 16,5. The Case Skid Steer Loader series covers 33 models. Rated output within it ranges from 46.6 to 91.2 hp; the SV185 sits in the lower part of that range with 60.8 hp. Its immediate neighbours are the 420 below it with 59.8 hp and the 410 Series III above it with 61.2 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelISM N844T/M3correct
Power60.8 hp (42.5 kW)correct
Rated speed2,900 rpmcorrect
Torque170.8correct
Speed at max. torque1,800 rpmcorrect
Cylinders4correct
Displacement2,212.3 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Wheelbase1,130.8correct
Ground clearance177.8correct

Drivetrain and chassis

Tyre size10 x 16.5correct
Top speed18.5 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow36.3 l/mincorrect
Hydraulic oil capacity16.3 lcorrect
Hydraulic pressure206.8correct
Fuel tank capacity75.7 lcorrect

Other data

Height1,972.1correct

Frequently asked questions

How much power does the Case SV185 have?

The Case SV185 delivers 60.8 hp.

What engine does the Case SV185 have?

4 cylinders, 2,212 cm³ displacement.

How fast does the Case SV185 go?

Top speed is 18.5 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
