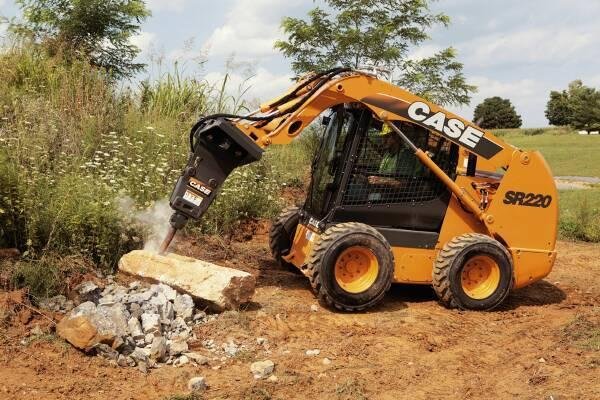

Case SR220

Series: Case Skid Steer Loader

Source: https://expomash.ru/product/stroitelnaya-tekhnika-mini-pogru

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The SR220 from Case is part of the Case Skid Steer Loader series. The engine delivers 83.1 hp (56.7 kW), has 4 cylinders, with a displacement of 3,195.5 cm³. Torque is 305.1 Nm. Rated speed is 2,500 rpm. The wheelbase measures 1,301.5 mm. Ground clearance is 203.2 mm. Top speed is 19.2 km/h. The tank holds 96.5 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 46.2 l/min. The hydraulic tank holds 22.7 litres. Working pressure is 206.8 bar. The electrical system runs on 12 V. The engine fitted is the 432T/M3. Tyre size: 12 x 16,5. The Case Skid Steer Loader series covers 33 models. Rated output within it ranges from 46.6 to 91.2 hp; the SR220 sits in the upper part of that range with 83.1 hp. Its immediate neighbours are the 445 Series III below it with 83 hp and the 70XT above it with 86.2 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model432T/M3correct
Power83.1 hp (56.7 kW)correct
Rated speed2,500 rpmcorrect
Torque305.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement3,195.5 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Wheelbase1,301.5correct
Ground clearance203.2correct

Drivetrain and chassis

Tyre size12 x 16.5correct
Top speed19.2 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow46.2 l/mincorrect
Hydraulic oil capacity22.7 lcorrect
Hydraulic pressure206.8correct
Fuel tank capacity96.5 lcorrect

Other data

Height2,002.5correct

Frequently asked questions

How much power does the Case SR220 have?

The Case SR220 delivers 83.1 hp.

What engine does the Case SR220 have?

4 cylinders, 3,196 cm³ displacement.

How fast does the Case SR220 go?

Top speed is 19.2 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
