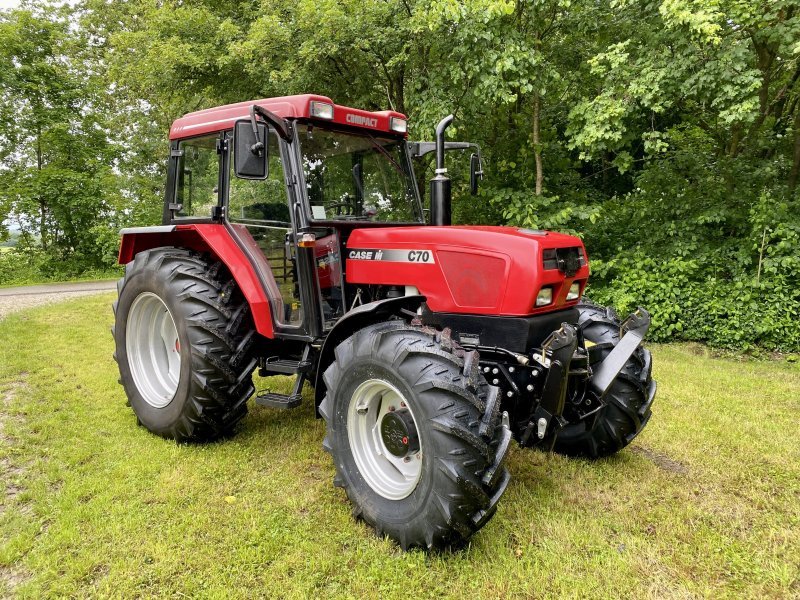

Case IH C70
Built: 1998-2002 · Series: Other models
Built in 1998-2002, the Case IH (cnh) C70 is a tractor from Case IH (cnh). It is powered by a four-cylinder engine producing 44 kW. Rated power is reached at 2,200 rpm.
It runs on diesel; the engine is water-cooled. It was replaced by the McCormick C70. Within the range, rated power spans from 17 to 400 kW; with 44 kW, the C70 sits at the bottom end. Directly alongside are the DX55 Farmall with 41 kW below and the CS63 with 47 kW above.
Technical data
Engine
| Engine make | Perkinscorrect |
|---|---|
| Engine model | 1,004.42correct |
| Fuel | dieselcorrect |
| Power | 59 hp (44 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 258 cu incorrect |
| Bore | 4.05 in (102,9 mm)correct |
| Stroke | 5 in (127 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 84.3 in (2141,2 mm)correct |
|---|
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|
Working data
| Fuel tank capacity | 20 galcorrect |
|---|---|
| PTO speed | 540/1000correct |
| Linkage category | Cat I/IIcorrect |
Origin and approval
| Plant | Doncaster, Englandcorrect |
|---|---|
| Successor | McCormick C70correct |
Frequently asked questions
How much power does the Case IH C70 have?
The Case IH C70 delivers 59 hp.
What engine does the Case IH C70 have?
4 cylinders, diesel.
When was the Case IH C70 built?
Production years: 1998-2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
