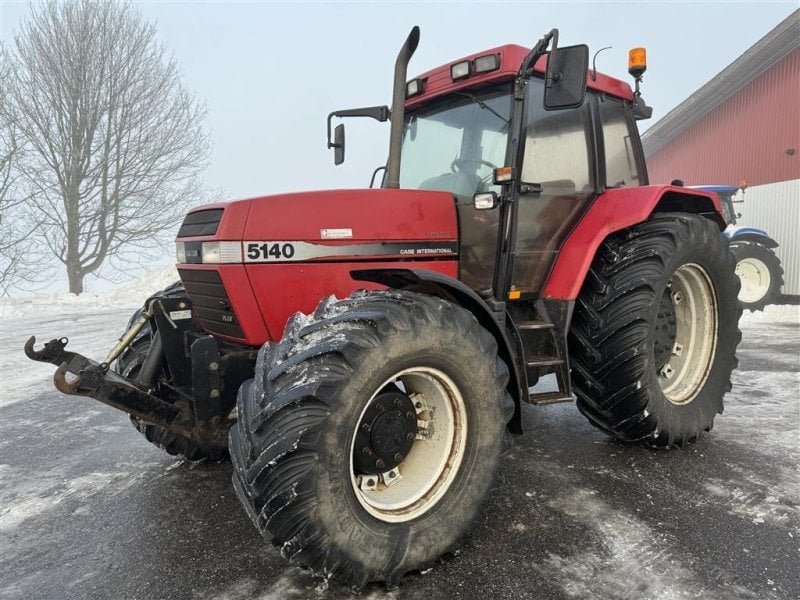

Case IH 5140
Built: 1990-1991 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH (cnh) 5140 is a tractor built in 1990-1991. It is powered by a six-cylinder engine producing 72 kW. Rated power is reached at 2,200 rpm.
Power is transmitted through a fully synchronized gearbox, drive type: MFWD.
It runs on diesel; the engine is water-cooled. It was replaced by the Case IH 5240. Within the range, rated power spans from 17 to 400 kW; with 72 kW, the 5140 sits in the lower third. Directly alongside are the JXU95 with 71 kW below and the CS100 with 73 kW above.
Technical data
Engine
| Engine make | CDCcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 97 ; 110 hp (72 ; 82 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 359 in (9118,6 mm)correct |
| Bore | 4.02 in (102,1 mm)correct |
| Stroke | 4.72 in (119,9 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 103.7 in (2WD); 101.8 in (MFWD)correct |
|---|
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | fully synchromesh gearboxcorrect |
| Forward gears | 16correct |
| Reverse gears | 12correct |
| Clutch | hydraulic wet disccorrect |
Working data
| Lifting capacity | 7,700 lbs (3492,7 kg)correct |
|---|---|
| PTO speed | 540/1000correct |
| Linkage category | Cat IIcorrect |
Origin and approval
| Plant | Neuss, Germanycorrect |
|---|---|
| Successor | Case IH 5240correct |
Other data
| Front linkage | Cat II (optional)correct |
|---|
Frequently asked questions
What engine does the Case IH 5140 have?
6 cylinders, diesel.
When was the Case IH 5140 built?
Production years: 1990-1991.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
