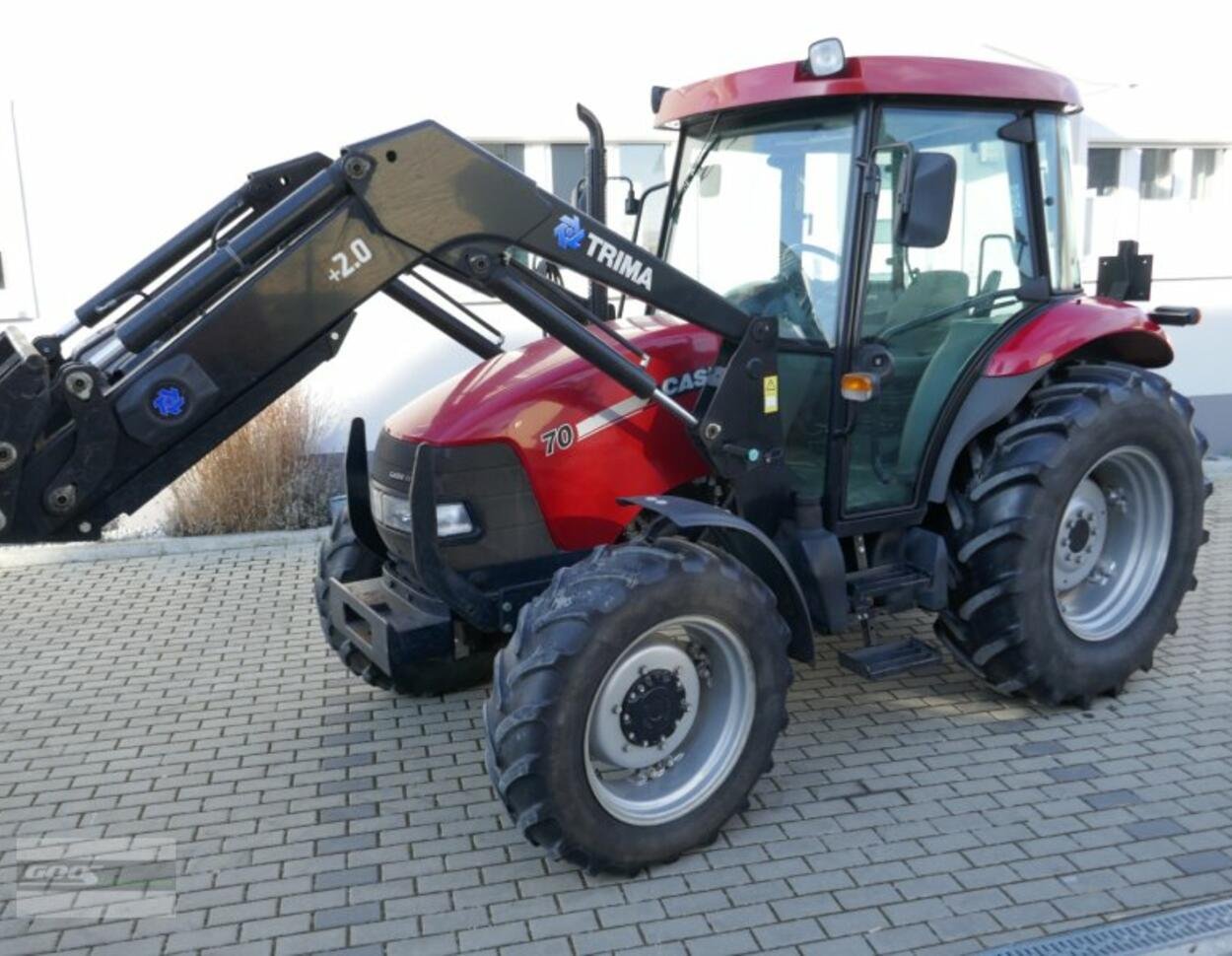

Case IH JX70 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Case IH JX70 belongs to the Case IH 2WD Tractor series. Under the bonnet works a three-cylinder engine displacing 2.9 litres, producing 63 hp (46.2 kW). Rated power arrives at 2,500 rpm — the engine pulls from low down rather than needing to be revved.
Unladen, it tips the scales at 2,637 kg. Wheelbase is 2.19 m.
Within the range, rated power spans from 62.9 to 127 hp; with 62.9 hp, the JX70 sits at the bottom end. The next one up is the Farmall 65C with 64.9 hp.
Technical data
Engine
| Power | 62.9 hp (46.2 kW)correct |
|---|---|
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,900.5 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,185.4correct |
|---|---|
| Unladen weight | 2,636.7 kgcorrect |
Drivetrain and chassis
| Gearbox type | 12x12 w / mechanical gearbox shuttlecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
Working data
| Pump flow | 82.1 l/mincorrect |
|---|---|
| Fuel tank capacity | 90.1 lcorrect |
Where this model stands
Power-to-weight ratio: 17.5 kW/t (46 kW / 2.6 t)
Power class: Universal (40–100 hp)
Stronger than 45% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH JX70 have?
The Case IH JX70 delivers 62.9 hp.
How much does the Case IH JX70 weigh?
The unladen weight is 2,637 kg.
What engine does the Case IH JX70 have?
3 cylinders, 2,900 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
