Case IH JX60 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

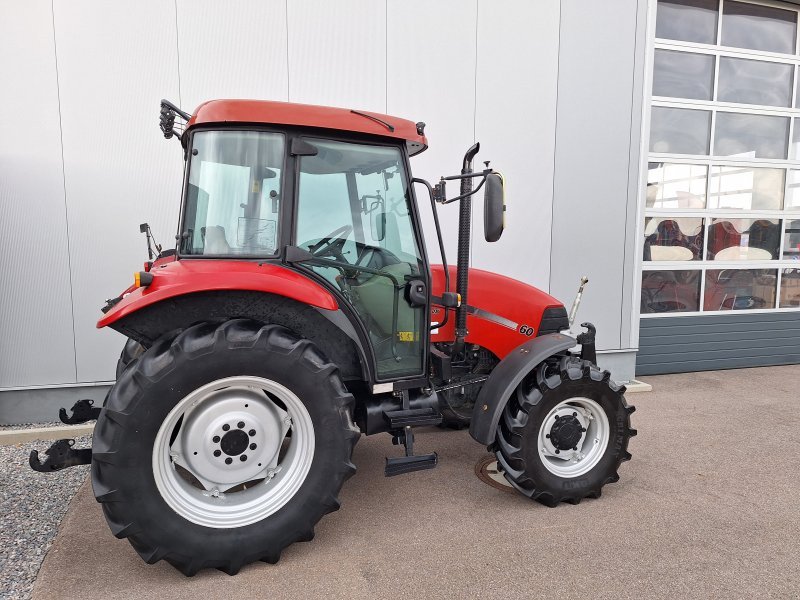

The Case IH JX60 is a tractor from the Case IH Utility Tractor series. The three-cylinder engine, displacing 2.9 litres, produces 56 hp (41 kW). With a rated speed of 2,500 rpm, it is built for pulling power, not for revving.
Empty, it weighs 2,637 kg. Wheelbase is 2.19 m.
Within the range, rated power spans from 31.4 to 55.8 hp; with 55.8 hp, the JX60 sits at the top. Below it ranks the Farmall 50 with 50.7 hp.
Technical data
Engine
| Power | 55.8 hp (41 kW)correct |
|---|---|
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,900.5 cm³correct |
| Aspiration | naturally aspiratedcorrect |
Dimensions and weights
| Wheelbase | 2,185.4correct |
|---|---|
| Unladen weight | 2,636.7 kgcorrect |
Drivetrain and chassis
| Gearbox type | 12x12 w / mechanical gearbox shuttlecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
Working data
| Pump flow | 82.1 l/mincorrect |
|---|---|
| Fuel tank capacity | 90.1 lcorrect |
Where this model stands
Power-to-weight ratio: 15.5 kW/t (41 kW / 2.6 t)
Power class: Universal (40–100 hp)
Stronger than 40% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH JX60 have?
The Case IH JX60 delivers 55.8 hp.
How much does the Case IH JX60 weigh?
The unladen weight is 2,637 kg.
What engine does the Case IH JX60 have?
3 cylinders, 2,900 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
