Start › Skid steer loaders › Case › 95XT

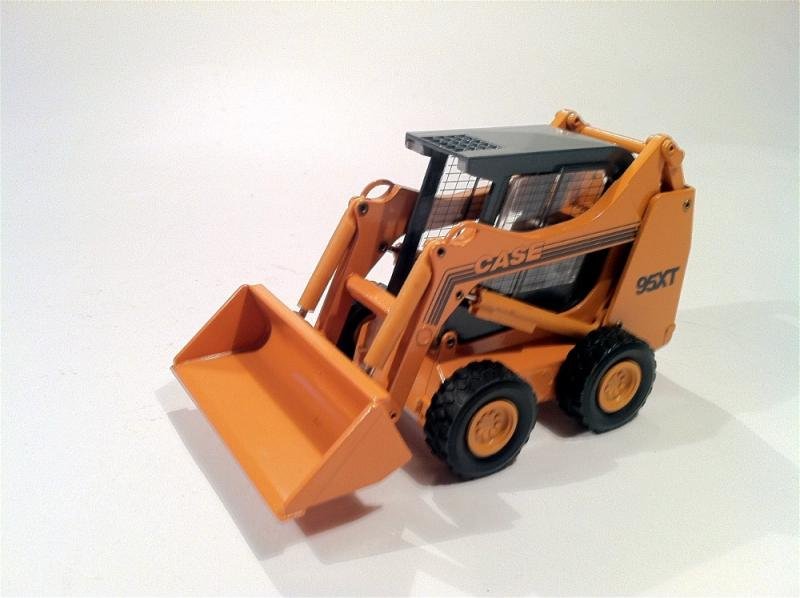

Case 95XT

Series: Case Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 95XT, Case offers a model from the Case Skid Steer Loader series. The engine delivers 86.2 hp (55.2 kW), has 4 cylinders, with a displacement of 3,916.5 cm³. Rated speed is 2,500 rpm. The wheelbase measures 1,280.2 mm. Ground clearance is 231.1 mm. Top speed is 17.9 km/h. The tank holds 76.1 litres. The pump delivers 104.5 l/min. The hydraulic tank holds 66.6 litres. Working pressure is 207 bar. The cooling system holds 16.7 litres. The electrical system runs on 12 V. The engine fitted is the 4T-390. Tyre size: 15,5x16,5. The Case Skid Steer Loader series covers 33 models. Rated output within it ranges from 46.6 to 91.2 hp; the 95XT sits at the top of that range with 86.2 hp. Its immediate neighbours are the SV250 below it with 83.1 hp and the 450 above it with 89.2 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model4T-390correct
Power86.2 hp (55.2 kW)correct
Rated speed2,500 rpmcorrect
Cylinders4correct
Displacement3,916.5 cm³correct
Aspirationturbochargedcorrect
Coolant capacity16.7 lcorrect

Dimensions and weights

Wheelbase1,280.2correct
Ground clearance231.1correct

Drivetrain and chassis

Tyre size15.5x16.5correct
Top speed17.9 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow104.5 l/mincorrect
Hydraulic oil capacity66.6 lcorrect
Hydraulic pressure207correct
Fuel tank capacity76.1 lcorrect

Other data

Height2,033correct

Frequently asked questions

How much power does the Case 95XT have?

The Case 95XT delivers 86.2 hp.

What engine does the Case 95XT have?

4 cylinders, 3,916 cm³ displacement.

How fast does the Case 95XT go?

Top speed is 17.9 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
