Case 450 Series III

Series: Case Skid Steer Loader

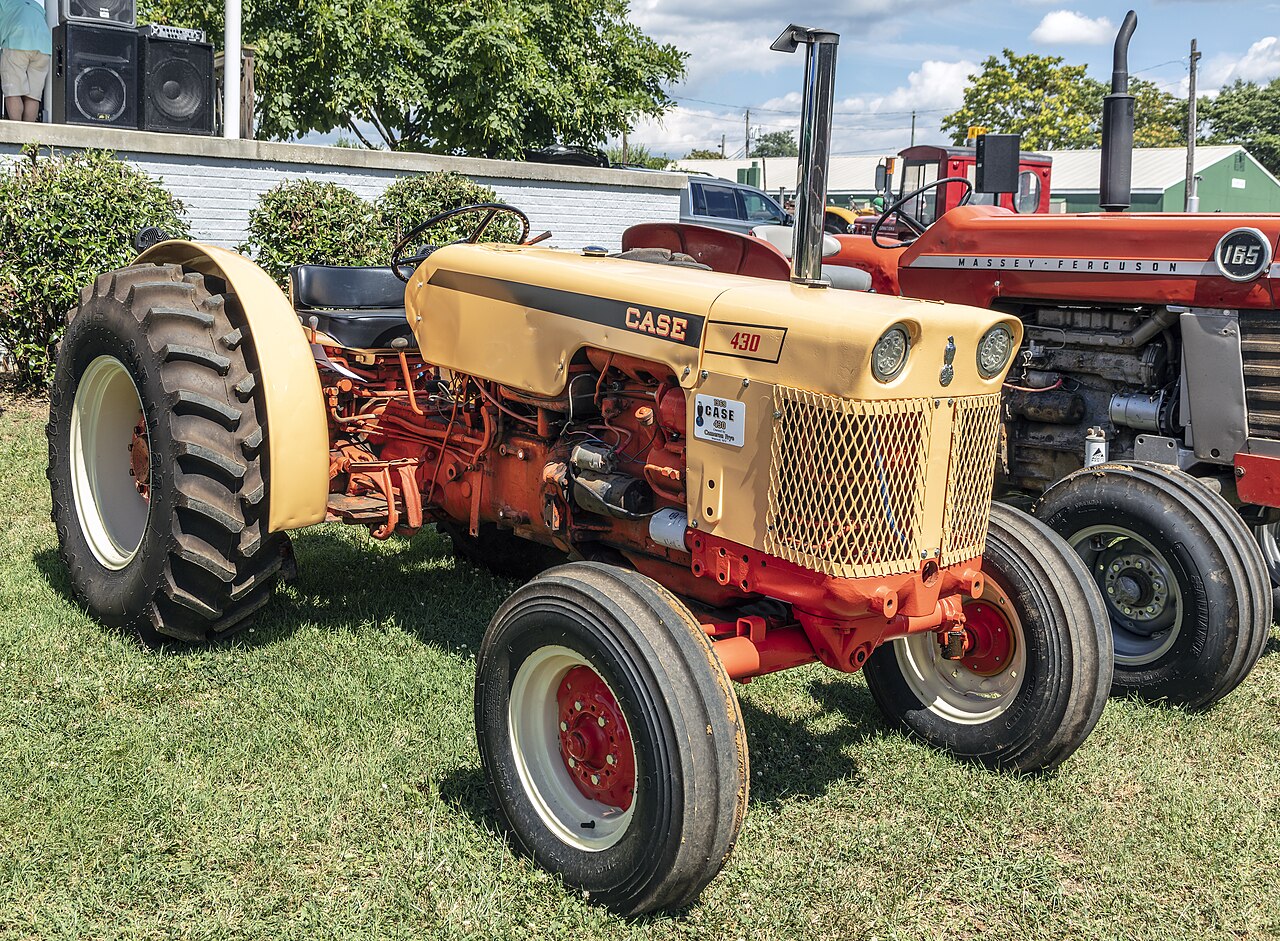

The photo shows the 430 from the same series. Wikimedia Commons · CC BY-SA 4.0 · Acroterion · Dateiseite

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 450 Series III, Case offers a model from the Case Skid Steer Loader series. The engine delivers 91.1 hp (62 kW), has 4 cylinders, with a displacement of 4,501.5 cm³. Rated speed is 2,300 rpm. The wheelbase measures 1,191.8 mm. Ground clearance is 234.2 mm. Top speed is 10.1 km/h. The tank holds 78.4 litres. The pump delivers 83.3 l/min. The hydraulic tank holds 64.4 litres. Working pressure is 210.3 bar. The cooling system holds 11.7 litres. The electrical system runs on 12 V. The engine fitted is the 445T/M3 diesel Tier III certified. Tyre size: 12,00 x 16,5 10 ply. The Case Skid Steer Loader series covers 33 models. Rated output within it ranges from 46.6 to 91.2 hp; the 450 Series III sits at the top of that range with 91.1 hp. Its immediate neighbours are the 440 below it with 90.2 hp and the SR250 above it with 91.2 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model445T/M3 diesel Tier III certifiedcorrect
Power91.1 hp (62 kW)correct
Rated speed2,300 rpmcorrect
Cylinders4correct
Displacement4,501.5 cm³correct
Aspirationturbochargedcorrect
Coolant capacity11.7 lcorrect

Dimensions and weights

Wheelbase1,191.8correct
Ground clearance234.2correct

Drivetrain and chassis

Tyre size12.00 x 16.5 10 plycorrect
Top speed10.1 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow83.3 l/mincorrect
Hydraulic oil capacity64.4 lcorrect
Hydraulic pressure210.3correct
Fuel tank capacity78.4 lcorrect

Other data

Height2,112.3correct

Frequently asked questions

How much power does the Case 450 Series III have?

The Case 450 Series III delivers 91.1 hp.

What engine does the Case 450 Series III have?

4 cylinders, 4,502 cm³ displacement.

How fast does the Case 450 Series III go?

Top speed is 10.1 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
