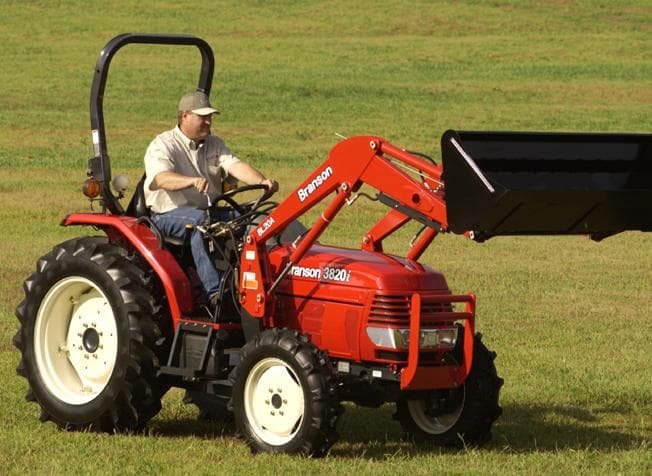

Branson 3820i 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Branson 3820i is a tractor from the Branson 4WD Tractor series. The four-cylinder engine, displacing 2.1 litres, produces 38 hp (28.3 kW). Rated output is reached at 2,600 rpm, so it works in the lower rev range.
Unladen weight is 1,854 kg.
Within the range, rated power spans from 29.4 to 65.9 hp; with 38.5 hp, the 3820i sits in the mid-field. Directly alongside are the F3550 with 37 hp below and the 4220i with 42.6 hp above.
Technical data
Engine
| Power | 38.5 hp (28.3 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,084.4 cm³correct |
| Aspiration | naturally aspiratedcorrect |
Dimensions and weights
| Unladen weight | 1,853.8 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | synchromesh gearboxcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Tyre size | front: 8-18, rear 12.4-28correct |
Working data
| Pump flow | 31.8 l/mincorrect |
|---|---|
| Fuel tank capacity | 41.6 lcorrect |
Other data
| Height | 2,465.8correct |
|---|
Where this model stands
Power-to-weight ratio: 15.3 kW/t (28 kW / 1.9 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Branson 3820i have?
The Branson 3820i delivers 38.5 hp.
How much does the Branson 3820i weigh?
The unladen weight is 1,854 kg.
What engine does the Branson 3820i have?
4 cylinders, 2,084 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
