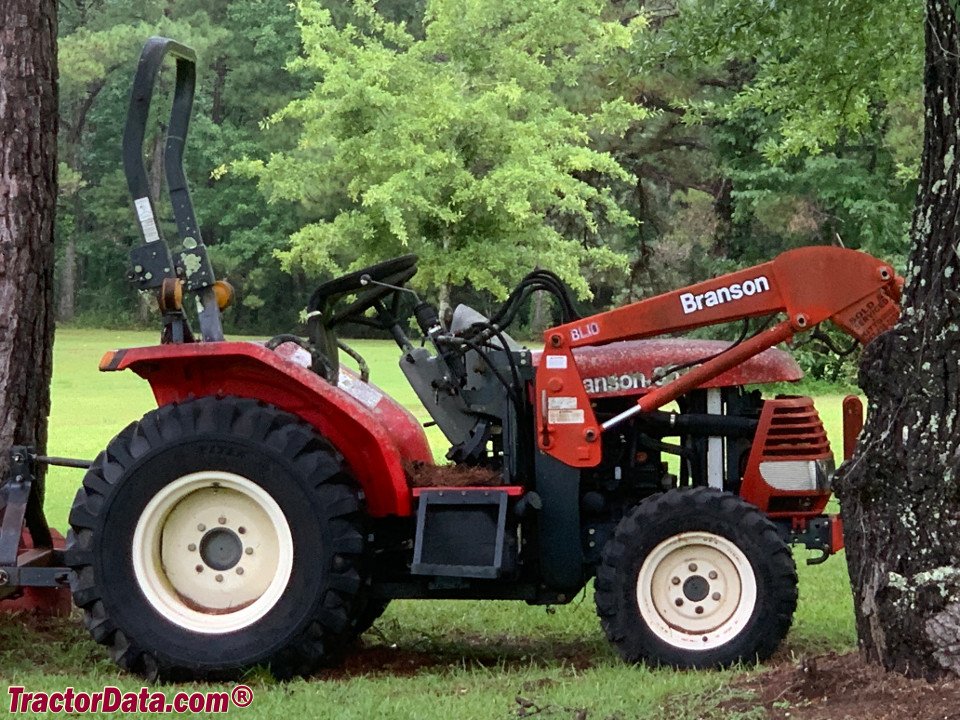

Branson 3510 HST 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Branson 3510 HST is a tractor from the Branson 4WD Tractor series. Power comes from a three-cylinder engine; from 1.7 litres it draws 36 hp (26.1 kW). With a rated speed of 2,600 rpm, it is built for pulling power, not for revving.
Within the range, rated power spans from 29.4 to 65.9 hp; with 35.5 hp, the 3510 HST sits at the bottom end. Directly alongside are the 2910i with 29.4 hp below and the F3550 with 37 hp above.
Technical data
Engine
| Power | 35.5 hp (26.1 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,714.1 cm³correct |
Drivetrain and chassis
| Gearbox type | hydrostatic transmissioncorrect |
|---|---|
| Forward gears | 3correct |
| Reverse gears | 3correct |
| Tyre size | front: 7-16, rear: 12.4-24correct |
Working data
| Pump flow | 43.9 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 37.1 lcorrect |
Other data
| Height | 2,374.4correct |
|---|
Frequently asked questions
How much power does the Branson 3510 HST have?
The Branson 3510 HST delivers 35.5 hp.
What engine does the Branson 3510 HST have?
3 cylinders, 1,714 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
