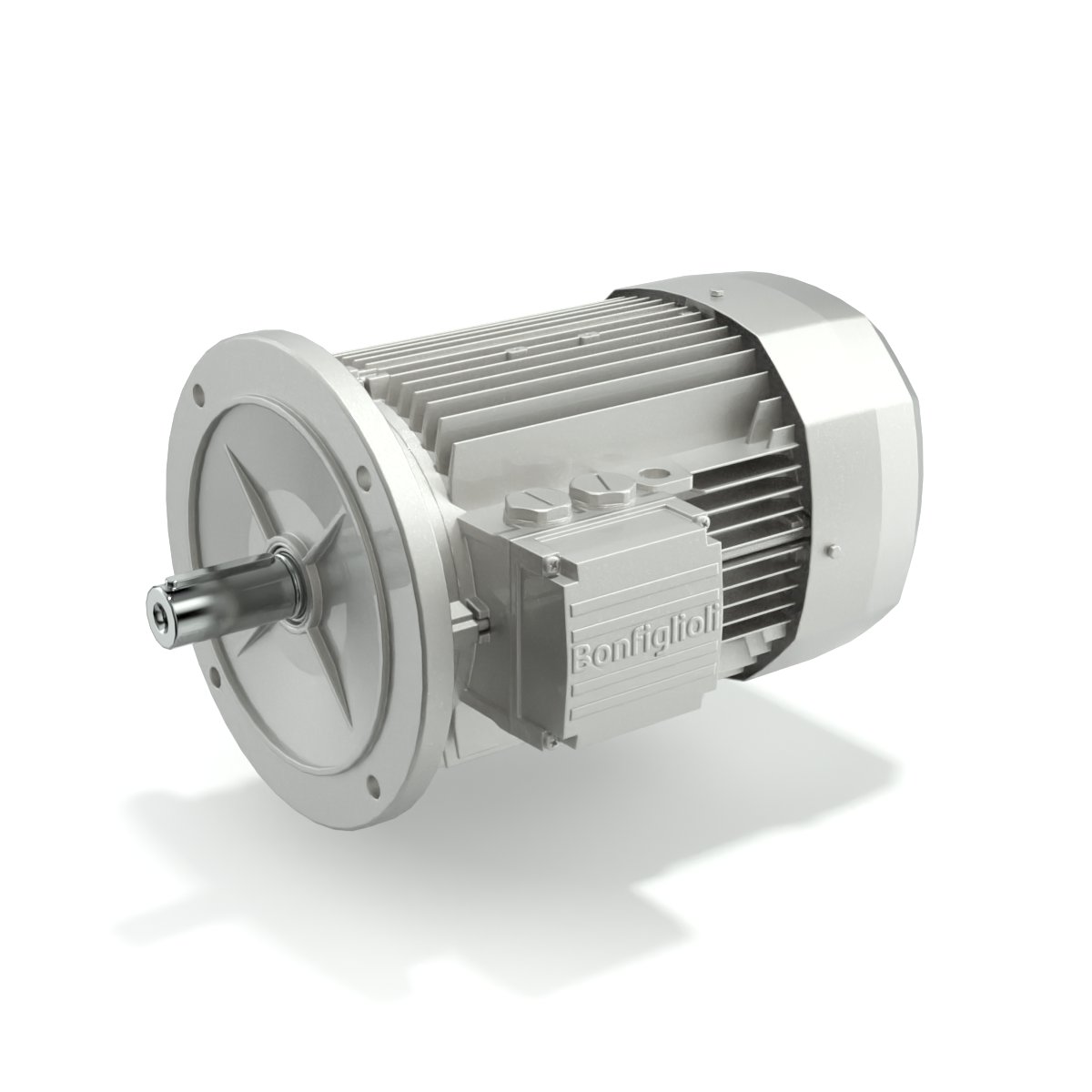

Bonfiglioli BN100LA4

Series: Other models

Source: https://www.bonfiglioli.com/germany/de/produkt/baureihe-bn

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The BN100LA4 from Bonfiglioli is a three-phase induction motor. The rated output is 2.2 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 100. The protection class is IP55. The efficiency is 81 per cent at full load, 81.5 per cent at 75 per cent load and 77.7 per cent at half load. Mounting arrangements to IEC 60034-7: B5 and B14. The motor is built in Italy. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2000 (Legacy); measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Bonfiglioli range ranges from 0.75 to 30 kW; the BN100LA4 sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the BX 90LA 4 below it with 1.5 kW and the BE 100LB 4 above it with 3 kW. 71 Bonfiglioli models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output2.2 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size100correct
Mounting (IEC 60034-7)B5, B14correct
Efficiency at full load81 %correct
Efficiency at 75 % load81.5 %correct
Efficiency at half load77.72 %correct

Origin and approval

Country of manufactureItalycorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Bonfiglioli BN100LA4 have?

The Bonfiglioli BN100LA4 delivers 2.2 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
