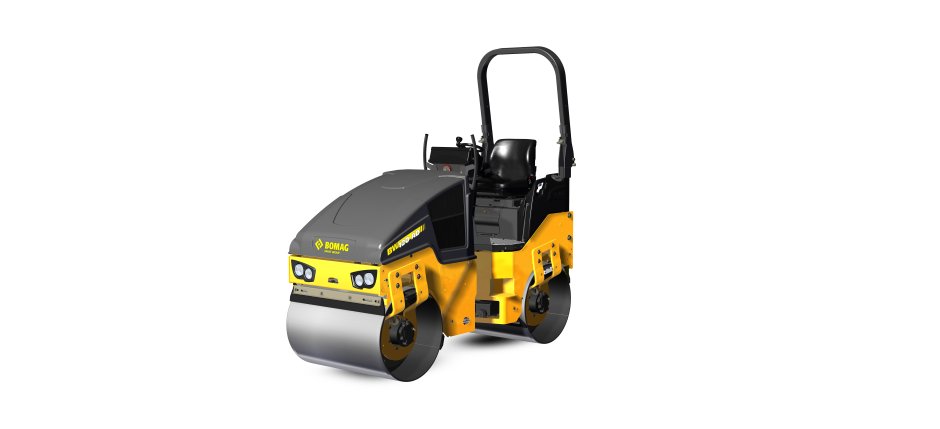

Bomag BW 100 SL-5

Series: Bomag Static Smooth Drum Roller

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the BW 100 SL-5, Bomag offers a model from the Bomag Static Smooth Drum Roller series. The engine delivers 25.3 hp (18.6 kW), has 3 cylinders. The engine comes from Kubota. Rated speed is 2,200 rpm. The wheelbase measures 1,752.6 mm. Ground clearance is 256 mm. Top speed is 9 km/h. The tank holds 34.8 litres. The electrical system runs on 12 V. The engine fitted is the D 1703-DI. The Bomag Static Smooth Drum Roller series covers 12 models. Rated output within it ranges from 20.3 to 455.2 hp; the BW 100 SL-5 sits at the bottom of that range with 25.3 hp. Its immediate neighbours are the BW 90 AD-5 below it with 20.5 hp and the BW5AS (4-6ton) above it with 47.7 hp. 291 Bomag models across 8 series are on record. The model is listed under Road construction. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine makeKubotacorrect
Engine modelD 1703-DIcorrect
Power25.3 hp (18.6 kW)correct
Rated speed2,200 rpmcorrect
Cylinders3correct

Dimensions and weights

Length2,529.1correct
Width1,072.9correct
Wheelbase1,752.6correct
Ground clearance256correct

Drivetrain and chassis

Top speed9 km/hcorrect
System voltage12 Vcorrect

Working data

Fuel tank capacity34.8 lcorrect

Frequently asked questions

How much power does the Bomag BW 100 SL-5 have?

The Bomag BW 100 SL-5 delivers 25.3 hp.

What engine does the Bomag BW 100 SL-5 have?

3 cylinders.

How fast does the Bomag BW 100 SL-5 go?

Top speed is 9 km/h.

What are the dimensions of the Bomag BW 100 SL-5?

2,529 mm × 1,073 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
