Bjem GX 280M-2

Series: GX

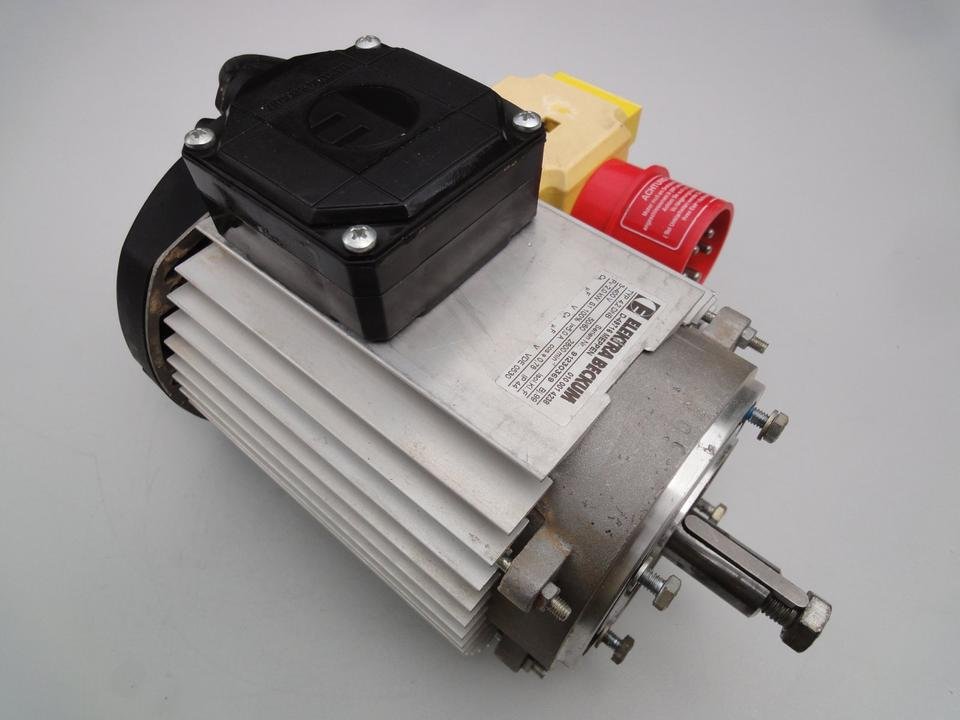

The photo shows the GX 250M-4 from the same series. Source: https://www.kleinanzeigen.de/s-anzeige/elektra-beckum-motor-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Bjem lists the GX 280M-2 as a three-phase induction motor. The rated output is 90 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 280 M in foot-mounted form. The protection class is IP55 and IP56. The efficiency is 95.3 per cent at full load, 95.1 per cent at 75 per cent load and 94 per cent at half load. The motor weighs 660 kg. At full load it delivers 289 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B35 and V1. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to AS 1359.102.1:1997. Rated output across the Bjem range ranges from 0.75 to 160 kW; the GX 280M-2 sits in the middle of that range with 90 kW. Its immediate neighbours are the GX 315S-6 below it with 75 kW and the GX 280M-2K above it with 110 kW. 85 Bjem models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output90 kWcorrect

Dimensions and weights

Weight660 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP55, IP56correct
Frame size280 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, V1correct
Efficiency at full load95.26 %correct
Efficiency at 75 % load95.09 %correct
Efficiency at half load93.96 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Bjem GX 280M-2 have?

The Bjem GX 280M-2 delivers 90 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
