Birkenbeul 6APE112M-4

Series: Other models

Source: https://birkenbeul.de/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Birkenbeul lists the 6APE112M-4 as a three-phase induction motor. The rated output is 4 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 112 M in foot-mounted form. The protection class is IP56. The efficiency is 87.1 per cent at full load, 87.3 per cent at 75 per cent load and 86.6 per cent at half load. The mounting arrangement to IEC 60034-7 is B5. The motor is built in China. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Birkenbeul range ranges from 1.1 to 4 kW; the 6APE112M-4 sits at the top of that range with 4 kW. Its immediate neighbours are the 8APE90S-4-IE3 below it with 1.1 kW. 3 Birkenbeul models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output4 kWcorrect

Electrical data

Number of poles4correct
Protection classIP56correct
Frame size112 M (foot)correct
Mounting (IEC 60034-7)B5correct
Efficiency at full load87.1 %correct
Efficiency at 75 % load87.3 %correct
Efficiency at half load86.6 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Birkenbeul 6APE112M-4 have?

The Birkenbeul 6APE112M-4 delivers 4 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

8APE90S-4

8APE90S-4-IE3

Sources: [1]

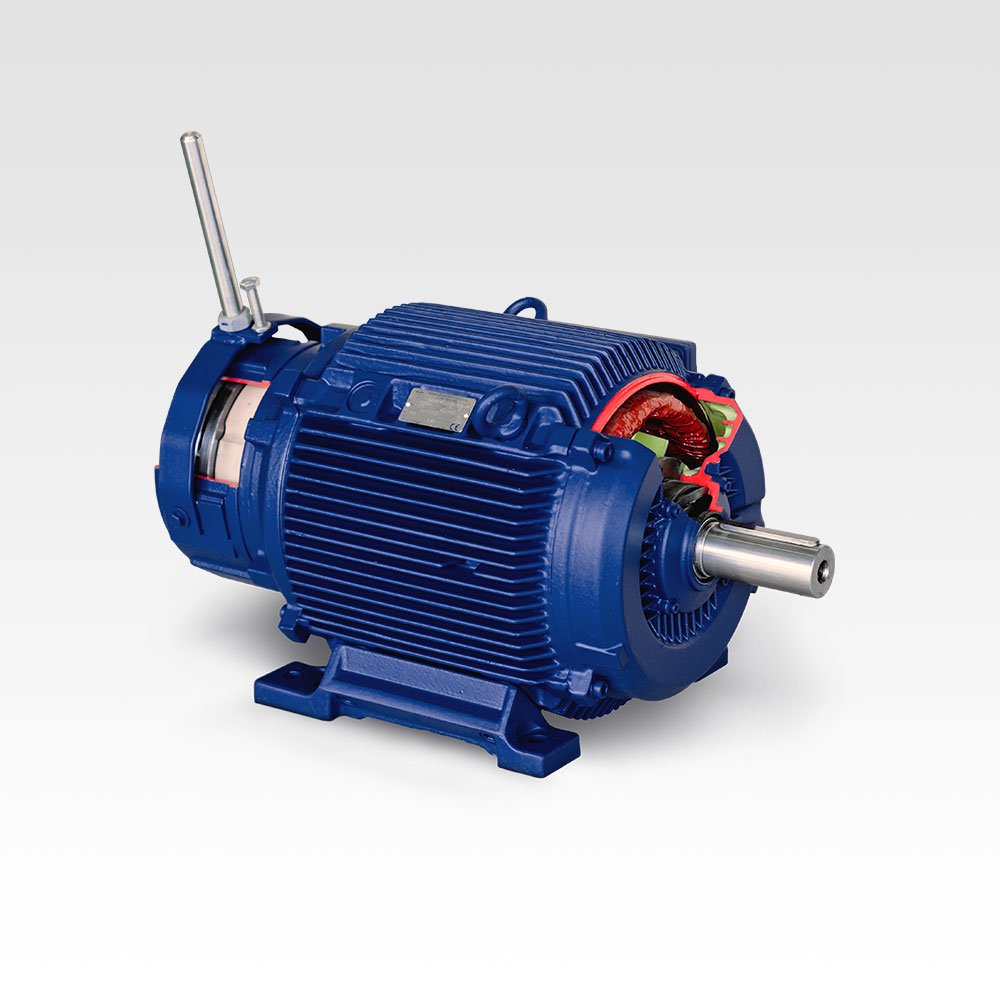

Electric motor in 3D section
