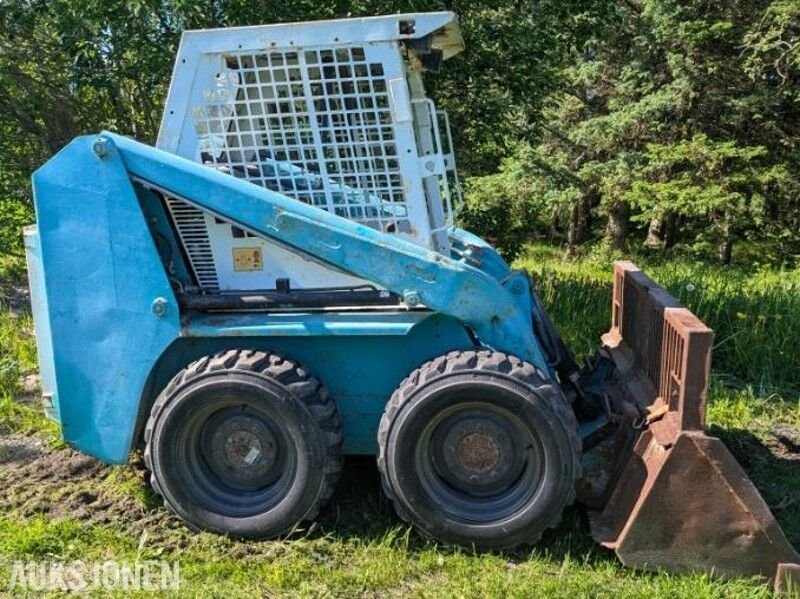

Belle 761XP

Series: Belle Skid Steer Loader

Source: https://www.truck1.eu/construction-machinery/skid-steer-load

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 761XP from Belle is part of the Belle Skid Steer Loader series. The engine delivers 35.8 kW, has 4 cylinders, with a displacement of 2,217.2 cm³. Rated speed is 2,600 rpm. The wheelbase measures 890 mm. Ground clearance is 254 mm. The tank holds 52.2 litres. The pump delivers 60.2 l/min. The hydraulic tank holds 55.3 litres. Working pressure is 195.9 bar. The engine fitted is the 104-22. Tyre size: 10 x 16,5. The Belle Skid Steer Loader series covers 3 models. 4 Belle models across 2 series are on record. The model is listed under Wheel loaders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine model	104-22correct
Power	35.8 kWcorrect
Rated speed	2,600 rpmcorrect
Cylinders	4correct
Displacement	2,217.2 cm³correct
Aspiration	Naturalcorrect

Dimensions and weights

Wheelbase	890correct
Ground clearance	254correct

Drivetrain and chassis

Tyre size	10 x 16.5correct

Working data

Pump flow	60.2 l/mincorrect
Hydraulic oil capacity	55.3 lcorrect
Hydraulic pressure	195.9correct
Fuel tank capacity	52.2 lcorrect

Other data

Height	1,959.9correct

Frequently asked questions

How much power does the Belle 761XP have?

The Belle 761XP delivers 35.8 kW.

What engine does the Belle 761XP have?

4 cylinders, 2,217 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
