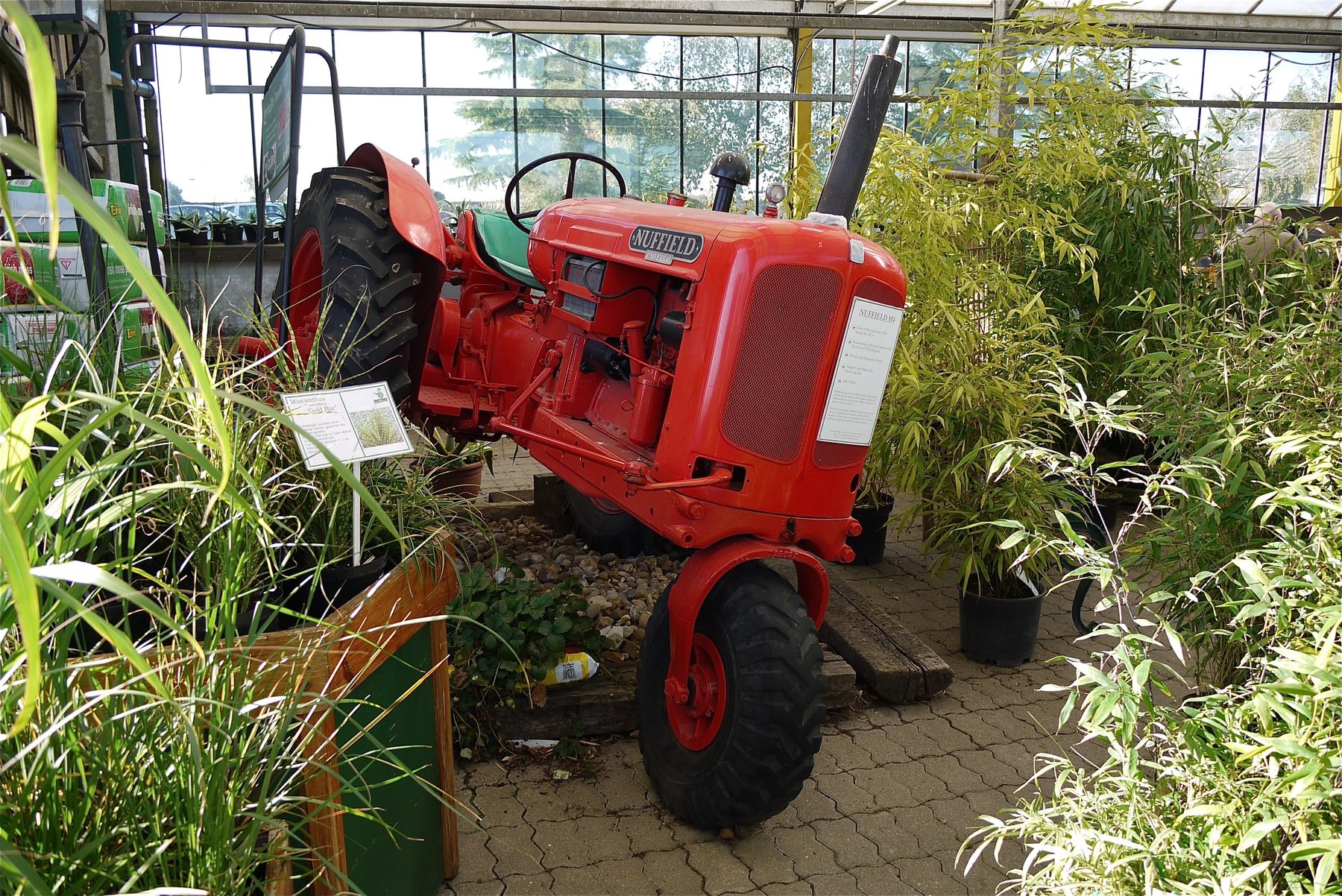

Nuffield DM 4
Built: 1960–1961 · Series: Other models
More machines from model year 1960
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Nuffield – other models: the collection page of British Morris Motors and BMC field tractors, from the 10-42 to the 4/65, three- and four-cylinder diesels of 2.55 to 3.77 litres, 28 to 42 kW
This page gathers the Nuffield tractors that the register does not assign to a separately named range – from the Universal generation of the late 1940s to the models of the 1960s. Nuffield traced back to William Morris, Lord Nuffield, whose Morris Motors built field tractors from 1948 at the Ward End works in Birmingham; in 1952 the make merged into the newly formed British Motor Corporation, from 1968 into British Leyland, which replaced it with the Leyland brand around 1969/72. The 4/65 type designation follows Nuffield's logic of cylinder count and power class: four cylinders, about 65 hp.
Read on 3 more paragraphs
The register lists 15 versions here with 28 to 42 kW from three- and four-cylinder diesels of 2,550 to 3,770 cm³, unladen weights from 1,880 to 2,300 kg, gross weights from 2,080 to 2,300 kg, lengths from 2,820 to 3,210 mm and widths from 1,257 to 2,260 mm.
Nuffield was one of the major British tractor exporters of the 1950s and 1960s to Australia, New Zealand, India and other Commonwealth countries, and competed at home with Fordson, Ferguson and David Brown for British arable farms.
On these tractors, now over fifty years old, engine and injection pump, clutch and gearbox, the linkage hydraulics, sheet metal and frame for rust, and tyres count; spare parts today run mainly through British Nuffield and vintage-tractor clubs.
Technical data
Engine
| Power | 37.5 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 3,402 cm³correct |
Dimensions and weights
| Length | 3,080 mmcorrect |
|---|---|
| Width | 1,900 mmcorrect |
| Unladen weight | 2,300 kgcorrect |
Drivetrain and chassis
| Gears | 5correct |
|---|
Where this model stands
Power-to-weight ratio: 16.3 kW/t (38 kW / 2.3 t)
Power class: Universal (40–100 hp)
Stronger than 36% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Nuffield DM 4 have?
The Nuffield DM 4 delivers 37.5 kW.
How much does the Nuffield DM 4 weigh?
The unladen weight is 2,300 kg.
What engine does the Nuffield DM 4 have?
4 cylinders, 3,402 cm³ displacement.
What are the dimensions of the Nuffield DM 4?
3,080 mm × 1,900 mm.
When was the Nuffield DM 4 built?
Production years: 1960–1961.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
