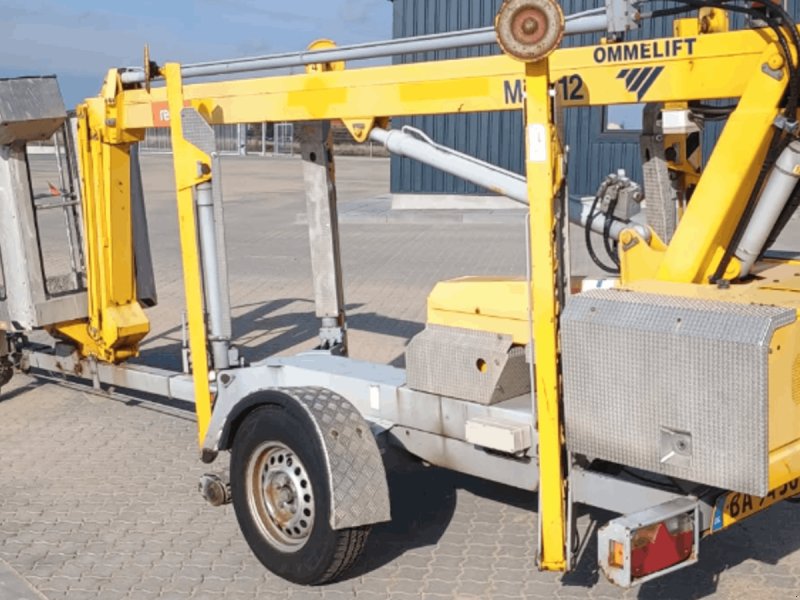

Omme Lift A/s 2500 E
Built: 2013 · Series: Other models
More machines from model year 2013
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Omme Lift – further models: Danish trailer-mounted work platforms from the compact 1300 EB to the articulated 2900 EBD, working height in the type number, weights from 1,600 to 3,500 kg
Omme Lift is a Danish manufacturer based in Løgstör that builds trailer-mounted aerial work platforms – boom lifts with no drive of their own, towed behind a car or light commercial vehicle. This collective page gathers the Omme models outside the named series, from compact units such as the 1300 EB up to the large articulated booms of the 2900 range. The four-digit number in the type designation approximates the maximum working height in decimetres, so a 2100 reaches roughly 21 metres; the letters after it describe the drive – E for mains electric, B for battery power, D for an additional diesel engine for use away from the grid, and X for an extending articulated arm with greater outreach.
Read on 3 more paragraphs
The register lists 25 versions with weights from 1,600 to 3,500 kilograms, lengths from 6,090 to 9,210 millimetres and widths from 1,590 to 2,150 millimetres. The heaviest models in the 2900 range put considerably more load on the trailer axle than the compact 1300 and 1500 units, which can still be towed behind an ordinary car.
Trailer-mounted platforms of this kind are common among plant hire companies, landscaping firms and tree surgeons as well as in facade work, because they need no drive of their own and can be moved flexibly between job sites. Omme competes in this segment with makers such as Niftylift, Denka Lift and CTE, which offer similar articulated and telescopic booms on trailer chassis.
When buying used, it is worth checking the hydraulic cylinders and hoses on the articulated arm for leaks, the function of the emergency lowering device in the work basket and the locking of the outrigger legs. On battery- or diesel-assisted versions, the state of charge and the running hours of the auxiliary engine indicate how well the unit has been maintained, and the annual inspection plate on the platform needs checking just as much as the tyres, brakes and the trailer chassis's coupling.
Sources: Kennwerte der Modelle Omme Lift (weitere Modelle), Omme Lift A/S (Hersteller)
Technical data
Dimensions and weights
| Length | 8,390 mmcorrect |
|---|---|
| Width | 1,690 mmcorrect |
| Wheelbase | 5,810 mmcorrect |
| Unladen weight | 3,300 kgcorrect |
| Gross vehicle weight | 3,300 kgcorrect |
Drivetrain and chassis
| Wheels | 2correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Omme Lift A/s 2500 E weigh?
The unladen weight is 3,300 kg.
What is the gross vehicle weight of the Omme Lift A/s 2500 E?
3,300 kg.
Up to what speed is the Omme Lift A/s 2500 E approved?
Approved up to 100 km/h.
What are the dimensions of the Omme Lift A/s 2500 E?
8,390 mm × 1,690 mm.
When was the Omme Lift A/s 2500 E built?
Production years: 2013.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
