Mercedes Benz SPRINTER 416 CDI

Built: 2006 · Series: Vans up to 3.5 t (Class N1)

More machines from model year 2006

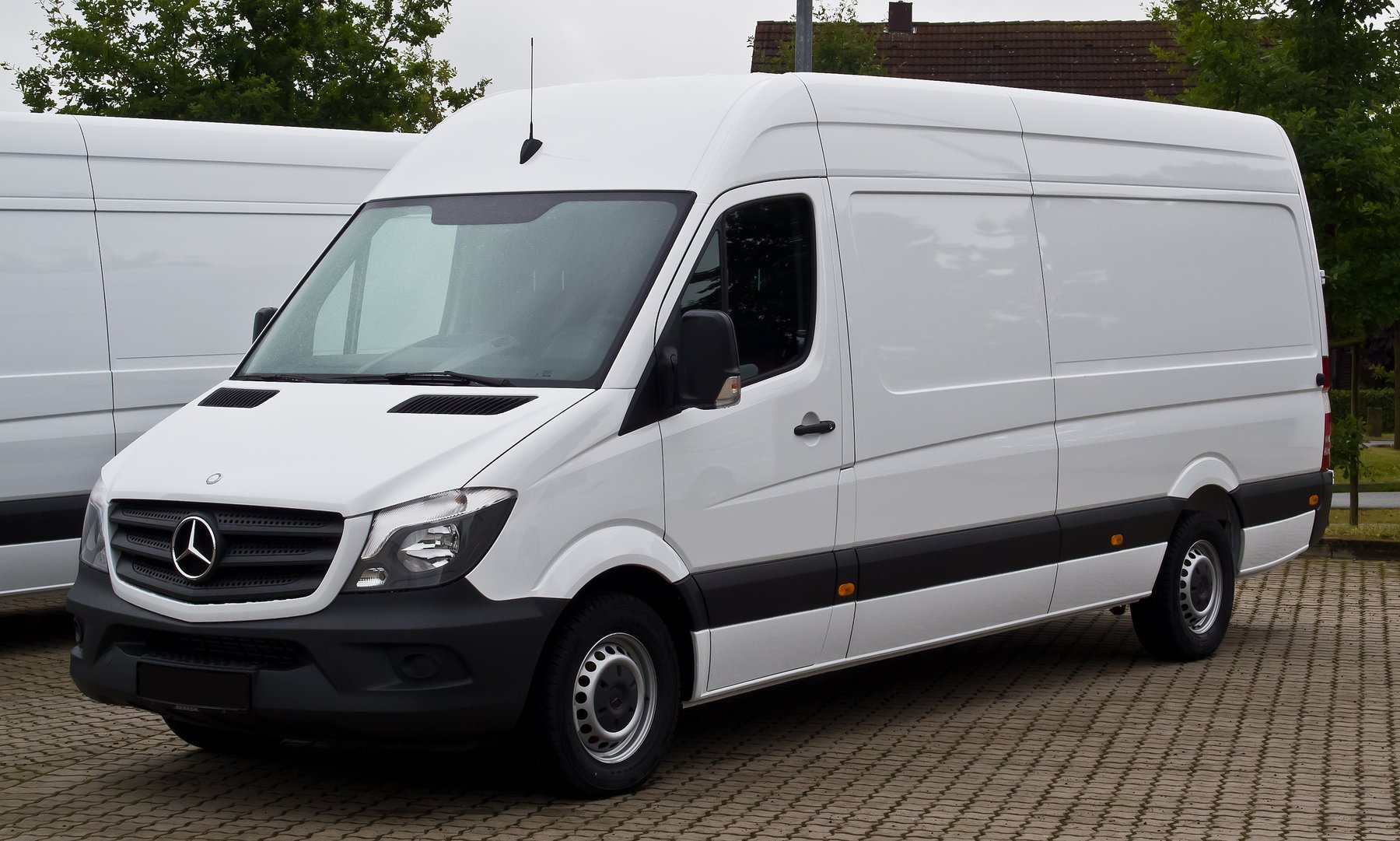

The photo shows the SPRINTER 313 CDI37S from the same series. Source: https://commons.wikimedia.org/wiki/File:Mercedes-Benz_Sprint

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

SPRINTER 416 CDI from Mercedes Benz falls into the category Vans up to 3.5 t (Class N1). According to the available register data, the vehicle dates from 2006. The van is 2,100 mm wide. Its kerb weight comes to 2,220 kg. Fully loaded, it may not exceed 3,500 kg. The engine has 5 cylinders, with a displacement of 2,685 cm³. Axle to axle, the wheelbase is 4,030 mm. It runs on 4 wheels. The Dutch vehicle register lists one example of this model.

Sprinter and Vito — what the three-digit number says, what the W906 series code means and why EU class N1 up to 3.5 tonnes needs only a category B licence

On Mercedes vans the three-digit number is not a model name but a shorthand for two facts. The first digit gives the weight class, the following two the power class. A Sprinter 313 CDI produces 129 hp, a 316 CDI 156 hp — the number rises with engine output while the leading 3 holds the class.

Read on 4 more paragraphs

More important than the number for a used purchase, however, is the internal series code. W906 denotes the Sprinter generation from June 2006 to December 2019 — thirteen years under one code. W907 and W910 followed. Comparing two offers both called "Sprinter 313", look for the series code and the year, not the type number.

Within the W906 there was a technical break: from mid-2009 the four-cylinder diesels came with the OM 651 engine, coupled to a six-speed manual designed for commercial use. A 2008 vehicle and a 2012 one carry the same type designation and have different engines.

As EU class N1 vehicles up to 3.5 tonnes, the Sprinter and Vito need only a category B licence, no tachograph, and in most countries no distance-based lorry toll, which only applies to substantially heavier vehicles. Over the W906's thirteen years of production, emissions stages tightened from Euro 4 to Euro 6: early examples manage with an oxidation catalyst and particulate filter, while later Euro 6 versions additionally need SCR technology with AdBlue injection, whose tank, dosing module and NOx sensors are wear items of their own.

Entries in this class come largely from official registration data. Dimensions, weights and axle counts are reliable; equipment, body height and wheelbase of individual vehicles are not consistently recorded there and should be checked on the vehicle itself when buying.

Sources: Kennwerte der Modelle Mercedes-Benz Transporter (Klasse N1)

Technical data

Engine

Cylinders5correct
Displacement2,685 cm³correct

Dimensions and weights

Width2,100 mmcorrect
Wheelbase4,030 mmcorrect
Unladen weight2,220 kgcorrect
Gross vehicle weight3,500 kgcorrect

Drivetrain and chassis

Wheels4correct

Frequently asked questions

How much does the Mercedes Benz SPRINTER 416 CDI weigh?

The unladen weight is 2,220 kg.

What is the gross vehicle weight of the Mercedes Benz SPRINTER 416 CDI?

3,500 kg.

What engine does the Mercedes Benz SPRINTER 416 CDI have?

5 cylinders, 2,685 cm³ displacement.

When was the Mercedes Benz SPRINTER 416 CDI built?

Production years: 2006.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
