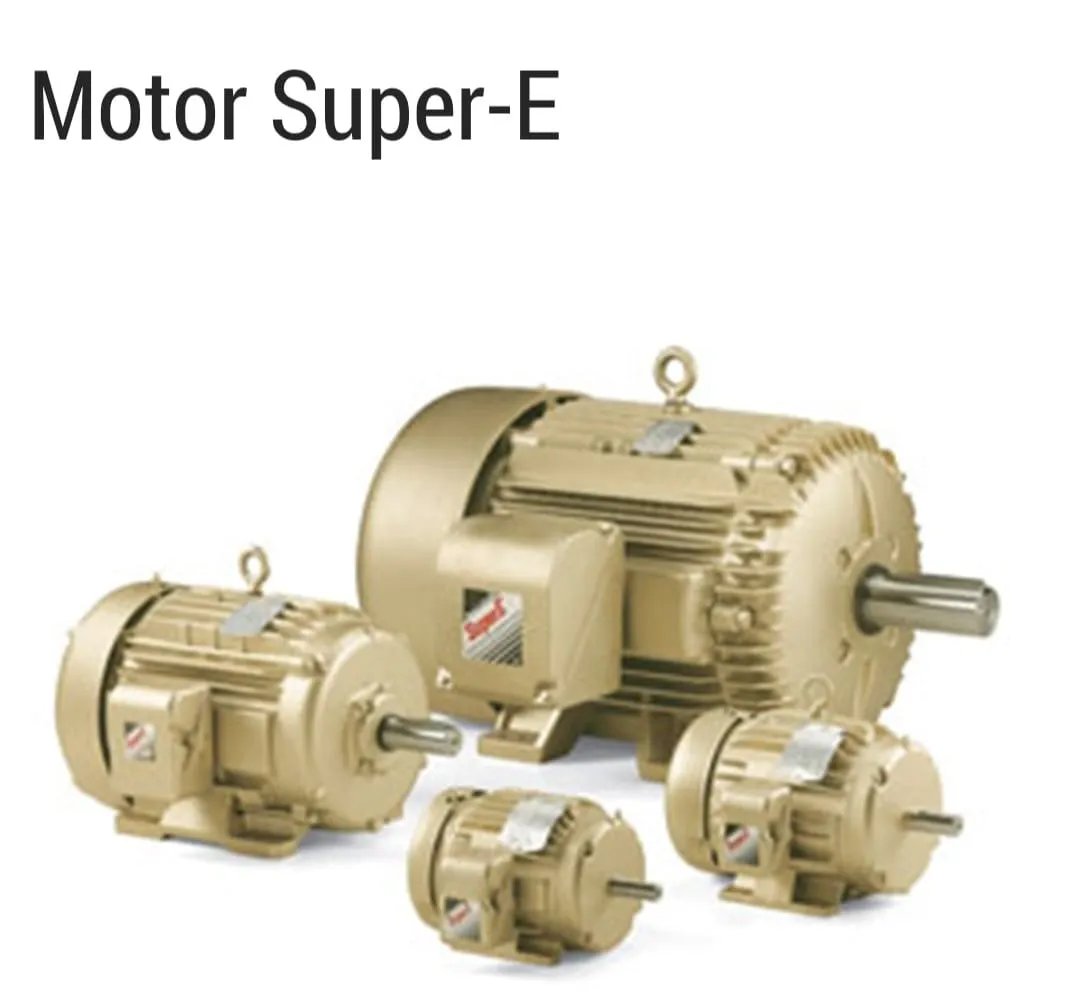

Baldor ZDNMM3669

Series: Other models

Source: https://www.baldor.co.id/Products/Baldor/Motor-Super-E.html

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Baldor ZDNMM3669 is a three-phase induction motor from the Baldor range. The rated output is 1.5 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 90 L in foot-mounted form. The protection class is IP55. The efficiency is 86.2 per cent at full load, 86.6 per cent at 75 per cent load and 85.4 per cent at half load. Mounting arrangements to IEC 60034-7: B3 and B5. The motor is built in the USA. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to IEEE 112-B(USA). Rated output across the Baldor range ranges from 0.75 to 1,119 kW; the ZDNMM3669 sits at the bottom of that range with 1.5 kW. Its immediate neighbours are the VWDM3554D-57 below it with 1.1 kW and the 07D015W860G1 above it with 2.2 kW. 841 Baldor models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output1.5 kWcorrect

Electrical data

Number of poles4correct
Protection classIP55correct
Frame size90 L (foot)correct
Mounting (IEC 60034-7)B3, B5correct
Efficiency at full load86.2 %correct
Efficiency at 75 % load86.6 %correct
Efficiency at half load85.4 %correct

Origin and approval

Country of manufactureUnited States of Americacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodIEEE 112-B(USA)correct

Frequently asked questions

How much power does the Baldor ZDNMM3669 have?

The Baldor ZDNMM3669 delivers 1.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
