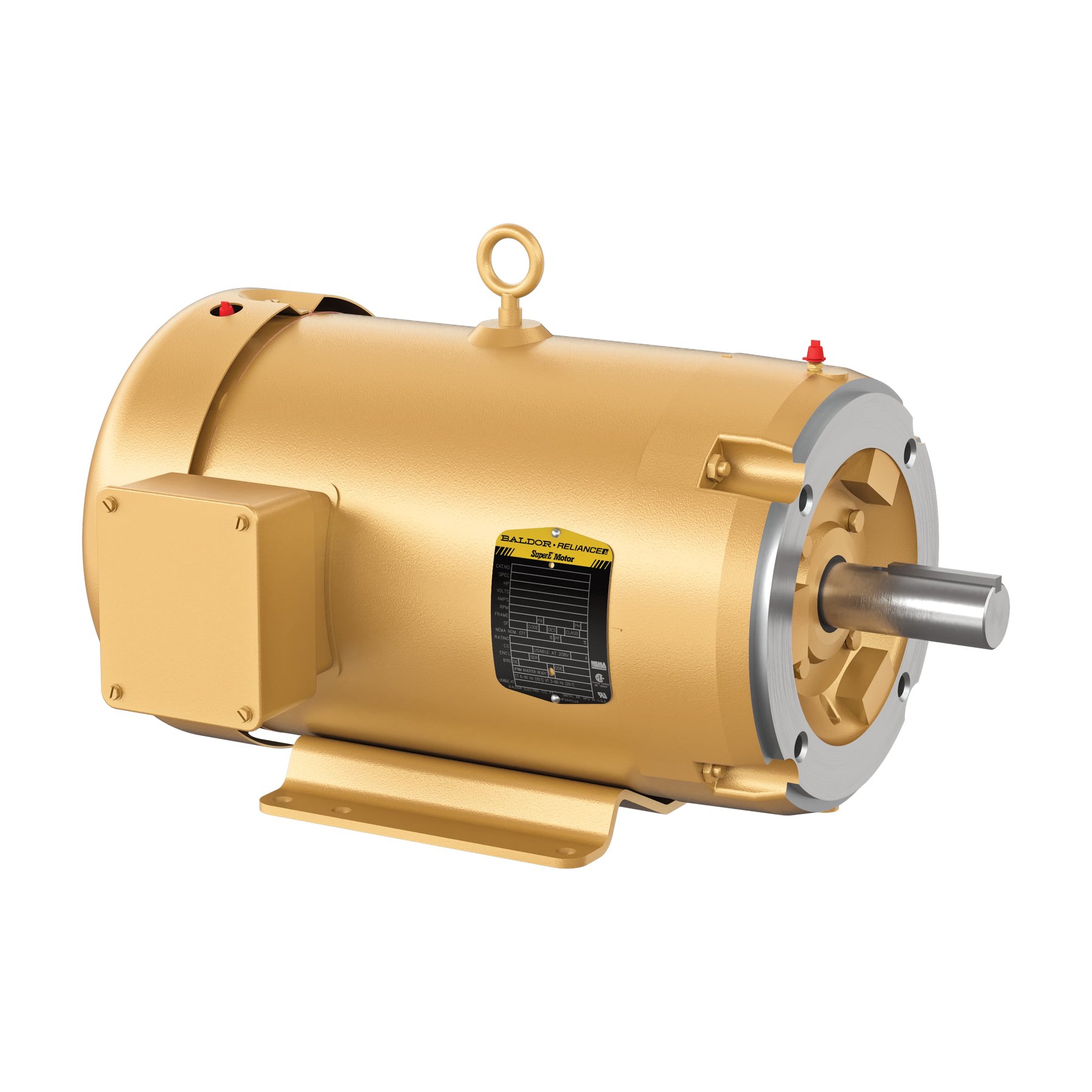

Baldor MWDM3714-56

Series: Other models

Source: https://www.abb.com/global/en/products/7bcem3714t-5

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Baldor lists the MWDM3714-56 as a three-phase induction motor. The rated output is 7.5 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 132 M in foot-mounted form. The protection class is IP55. The efficiency is 87.5 per cent at full load, 89 per cent at 75 per cent load and 88.9 per cent at half load. The mounting arrangement to IEC 60034-7 is B3. The motor is built in the USA. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to IEEE 112-B(USA). Rated output across the Baldor range ranges from 0.75 to 1,119 kW; the MWDM3714-56 sits at the bottom of that range with 7.5 kW. Its immediate neighbours are the 37J639T384G1 below it with 5.6 kW and the 09-A000-0104 above it with 11 kW. 841 Baldor models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output7.5 kWcorrect

Electrical data

Number of poles4correct
Protection classIP55correct
Frame size132 M (foot)correct
Mounting (IEC 60034-7)B3correct
Efficiency at full load87.5 %correct
Efficiency at 75 % load89 %correct
Efficiency at half load88.9 %correct

Origin and approval

Country of manufactureUnited States of Americacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodIEEE 112-B(USA)correct

Frequently asked questions

How much power does the Baldor MWDM3714-56 have?

The Baldor MWDM3714-56 delivers 7.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
