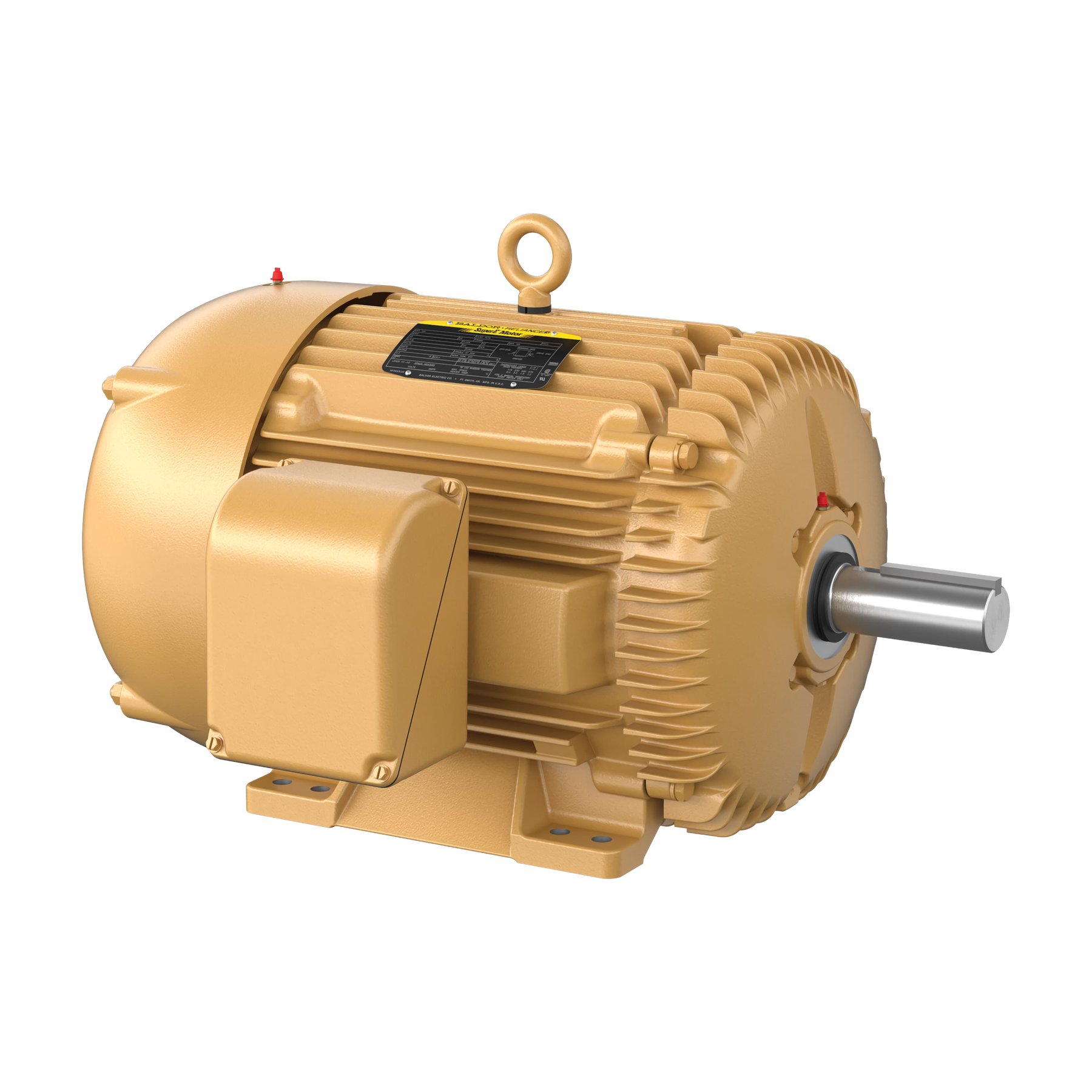

Baldor MM3615-56

Series: Other models

Source: https://www.abb.com/global/en/products/7bem4110t-bg

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MM3615-56 from Baldor is a three-phase induction motor. The rated output is 4 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 415 V. The housing is frame size 112 M in foot-mounted form. The protection class is IP54. The efficiency is 85 per cent at full load, 86.9 per cent at 75 per cent load and 85.6 per cent at half load. The mounting arrangement to IEC 60034-7 is B3. The motor is built in the USA. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to IEEE 112-B(USA). Rated output across the Baldor range ranges from 0.75 to 1,119 kW; the MM3615-56 sits at the bottom of that range with 4 kW. Its immediate neighbours are the VEM3615T below it with 3.7 kW and the 07H531W722G2 above it with 4.66 kW. 841 Baldor models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output4 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles4correct
Protection classIP54correct
Frame size112 M (foot)correct
Mounting (IEC 60034-7)B3correct
Efficiency at full load85 %correct
Efficiency at 75 % load86.9 %correct
Efficiency at half load85.6 %correct

Origin and approval

Country of manufactureUnited States of Americacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodIEEE 112-B(USA)correct

Frequently asked questions

How much power does the Baldor MM3615-56 have?

The Baldor MM3615-56 delivers 4 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
