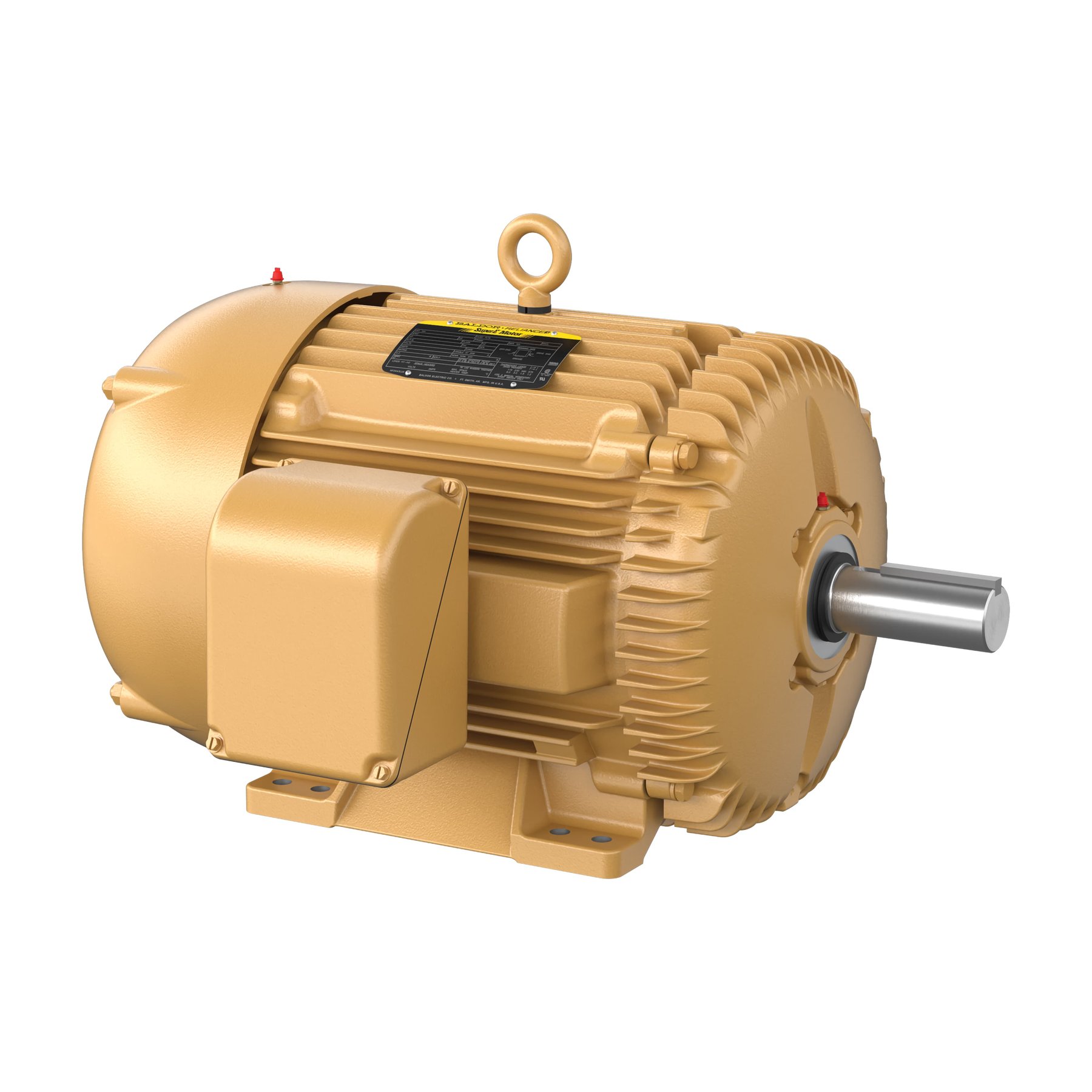

Baldor M4C 225M-6

Series: M4C

Source: https://www.abb.com/global/en/products/7bem4110t-bg

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Baldor lists the M4C 225M-6 as a three-phase induction motor. The rated output is 30 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 415 V. The housing is frame size 225 M in foot-mounted form. The protection class is IP55. The efficiency is 92.6 per cent at full load, 92.9 per cent at 75 per cent load and 92.1 per cent at half load. The motor weighs 303 kg. At full load it delivers 290.9 Nm. Mounting arrangements to IEC 60034-7: B3, B14, B34 and B35. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to AS 1359.102.1:1997. Rated output across the Baldor range ranges from 0.75 to 1,119 kW; the M4C 225M-6 sits at the bottom of that range with 30 kW. Its immediate neighbours are the ZDMM4104 below it with 22 kW and the 12F675W934G1 above it with 37 kW. 841 Baldor models are on record. The model is listed under Electric motors. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine familyM4C 225M-6correct
Engine familiesM4C 225M-6correct
Rated output30 kWcorrect

Dimensions and weights

Weight303 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles6correct
Protection classIP55correct
Frame size225 M (foot)correct
Mounting (IEC 60034-7)B3, B14, B34, B35correct
Efficiency at full load92.6 %correct
Efficiency at 75 % load92.9 %correct
Efficiency at half load92.1 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Baldor M4C 225M-6 have?

The Baldor M4C 225M-6 delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
