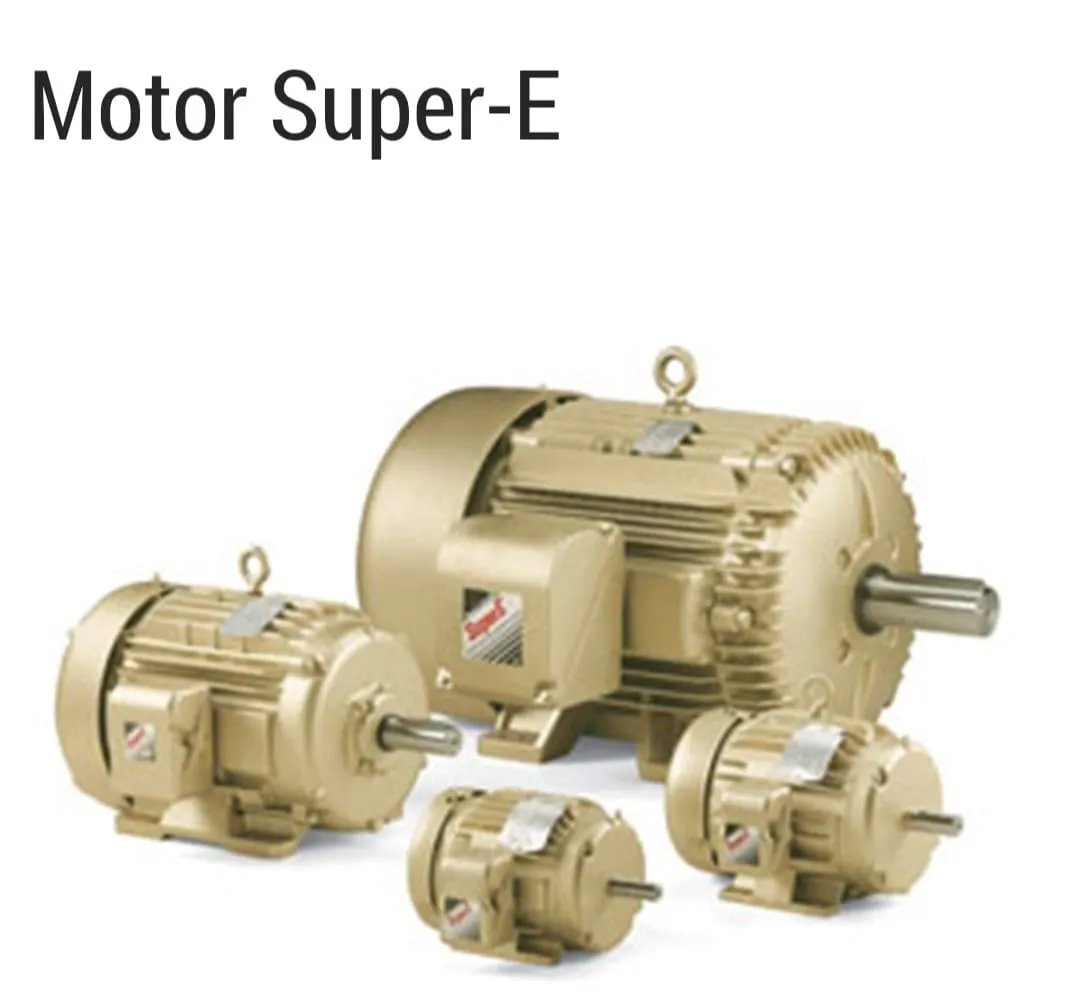

Baldor CSWDM3554T

The CSWDM3554T from Baldor is a three-phase induction motor. The rated output is 1.1 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 480 V. The housing is frame size 90 L in foot-mounted form. The protection class is IP65. The efficiency is 85.6 per cent at full load, 85.2 per cent at 75 per cent load and 82.6 per cent at half load. The motor weighs 19 kg. At full load it delivers 6,096 Nm. The mounting arrangement to IEC 60034-7 is B34. The motor is built in the USA. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEEE 112-B(USA). Rated output across the Baldor range ranges from 0.75 to 1,119 kW; the CSWDM3554T sits at the bottom of that range with 1.1 kW. Its immediate neighbours are the ZDNMM3581 below it with 0.75 kW and the 05E535W710G1 above it with 1.5 kW. 841 Baldor models are on record. The model is listed under Electric motors. 25 verified figures from 1 source are on file.
