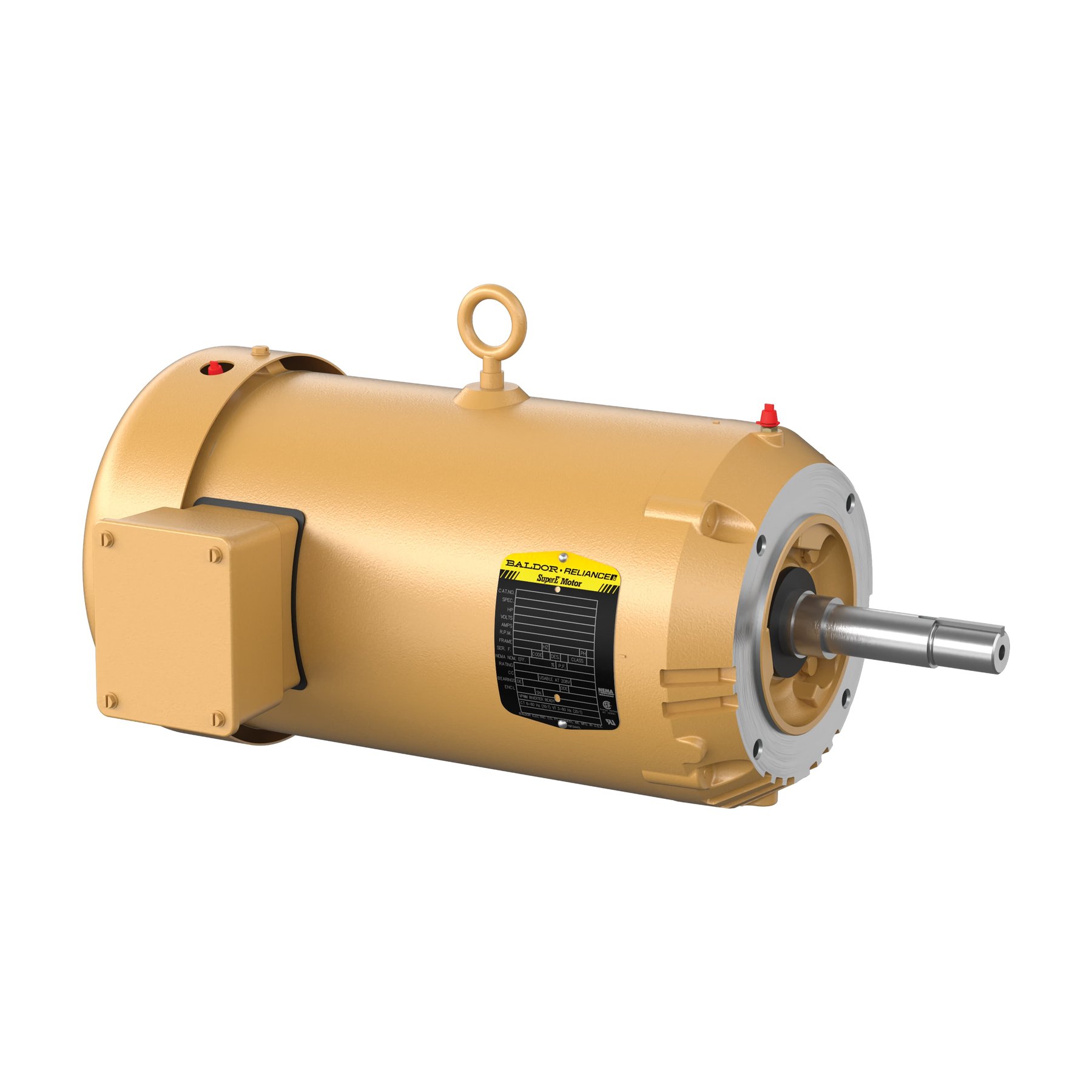

Baldor CM3611T-57

Baldor lists the CM3611T-57 as a three-phase induction motor. The rated output is 2.2 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 415 V. The housing is frame size 180. The protection class is IP55. The efficiency is 86.2 per cent at full load, 85.5 per cent at 75 per cent load and 84.6 per cent at half load. The motor weighs 33 kg. At full load it delivers 14.7 Nm. The mounting arrangement to IEC 60034-7 is B3. The motor is built in the USA. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to IEEE 112-B(USA). Rated output across the Baldor range ranges from 0.75 to 1,119 kW; the CM3611T-57 sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the ZDNMM3669 below it with 1.5 kW and the B622590 above it with 3 kW. 841 Baldor models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.
