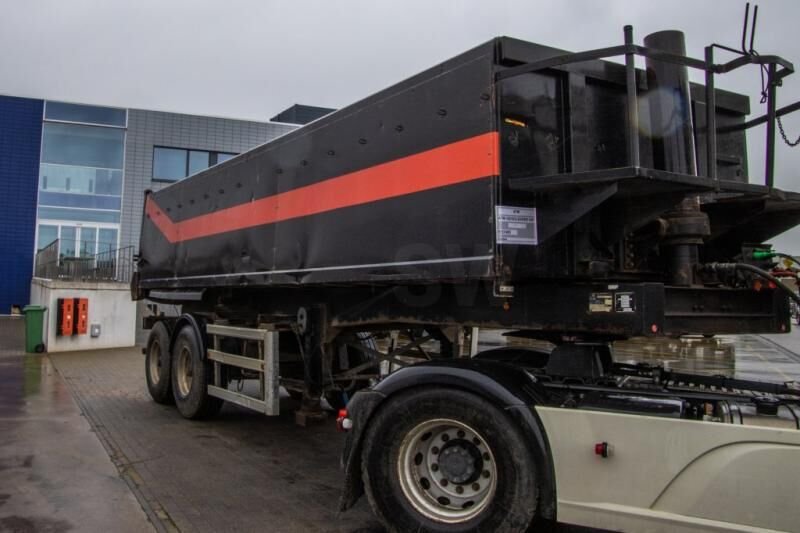

Atm DAK 18
Built: 1999-1999 · Series: Other models
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
ATM – other trailers: collective page outside the named ranges, with codes such as ADL, AKF and CARL for various axle and body variants, up to 52.5 tonnes gross weight
This page gathers ATM trailers and semi-trailers that the register could not assign to a named range. The type designations usually consist of two to three letters – for example ADL, AKF, CARL or OKA – followed by one or two numbers that, by the maker's logic, hint at axle count and payload class in tonnes; suffixes such as /1, /2 or /3 mark equipment variants or model years of the same base design. The range spans compact single-axle trailers to multi-axle low-loaders and special semi-trailers.
Read on 3 more paragraphs
The register lists here 75 versions with gross weights from 1,250 to 52,500 kg, lengths from 1,440 to 13,750 mm and widths from 2,200 to 2,980 mm; unladen weights are not given here because of a few implausible values.
The huge span from small trailers to heavy semi-trailers almost three metres wide points to a range that, alongside standard versions, also covers special and wide-load transport for construction and industry; such versions require a separate special permit for road transport in many countries.
When buying used, what counts is corrosion on the frame and side members, the condition of the axles, suspension and braking system, and on low-loaders the condition of the ramps and any hydraulics; on wide special versions, complete documentation of special permits and pilot-vehicle equipment as well. Spare parts for axles and brakes are available through the general trailer parts trade.
Technical data
Dimensions and weights
| Length | 7,200 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 1,310 mmcorrect |
| Unladen weight | 4,440 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Atm DAK 18 weigh?
The unladen weight is 4,440 kg.
What is the gross vehicle weight of the Atm DAK 18?
18,000 kg.
Up to what speed is the Atm DAK 18 approved?
Approved up to 100 km/h.
What are the dimensions of the Atm DAK 18?
7,200 mm × 2,500 mm.
When was the Atm DAK 18 built?
Production years: 1999.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
