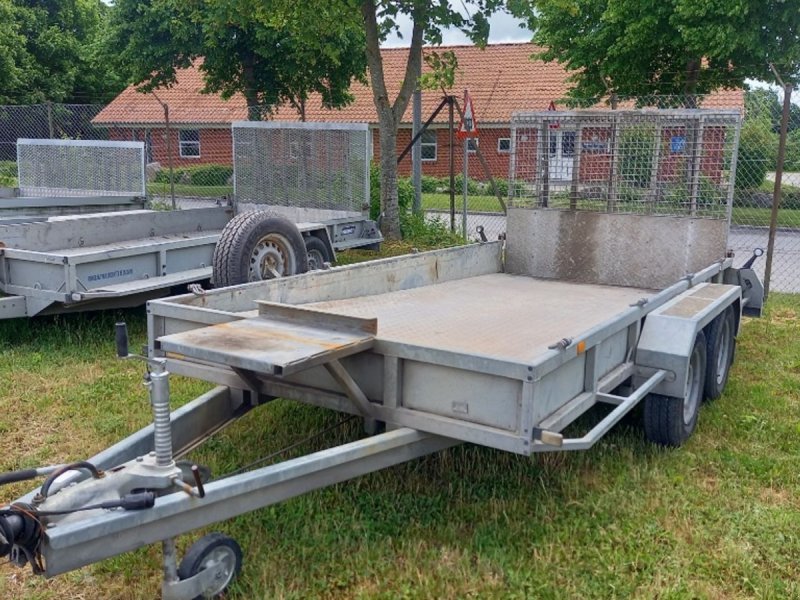

Aku TP385-DLB

Built: 2014-2026 · Series: Other models

More machines from model year 2014

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Aku TP385-DLB is a vehicle built by Aku. Production: 2014-2026. The vehicle is 5,670 mm long and 2,360 mm wide. The unladen weight is 796 kg. The gross vehicle weight is 3,650 kg. Unladen weight across the Aku range ranges from 452 to 1,060 kg; the TP385-DLB sits in the middle of that range with 796 kg. Its immediate neighbours are the 3500ATP below it with 770 kg and the BP3500-DRB above it with 811 kg. 17 Aku models are on record.

Aku – trailers (further models): 18 versions of light transport and boat trailers, kerb weights from 270 to 1,060 kg, lengths up to 10.4 metres

Aku is listed as a manufacturer of light trailers. This page collects 18 versions outside named ranges, from compact types such as 3500 VT and SP250-DRB to long versions such as TP385-DLB and CP600-DRBW/drop.

Read on 4 more paragraphs

The register lists 18 versions with kerb weights from 270 to 1,060 kg, gross weights from 1,400 to 3,650 kg, lengths from 4,257 to 10,414 mm and widths from 1,912 to 2,600 mm. The large number of models within comparatively narrow weight bands shows a fine grading within the light trailer class.

With gross weights mostly below 3,500 kg, most of this range falls within EU trailer category O2, for which an overrun brake is required; the heaviest version slightly exceeds that limit and already reaches into category O3, where an overrun brake remains permitted only with separate type approval. Towing behind a car needs licence category B or BE depending on the combination's gross weight; on the long versions built for boats, the nose weight at the ball coupling shifts with the boat's position on the trailer and is worth rebalancing by moving the load before setting off.

Trailers of this size carry boats, machinery or loads up to 3.5 tonnes and are aimed at tradespeople, clubs and private users. The fine model grading allows a suitable length and payload to be offered for different loads without exceeding the weight limit for a standard trailer licence.

When buying used, check the condition of the chassis and loading floor, the operation of the overrun brake, the condition of axles and tyres and, on the longer versions, the load capacity of the drawbar. Parts such as axles, brakes and lighting are available through the general trailer trade.

Sources: SpecCodex register, model data: Aku (weitere Modelle)

Technical data

Dimensions and weights

Length5,670 mmcorrect
Width2,360 mmcorrect
Unladen weight796 kgcorrect
Gross vehicle weight3,650 kgcorrect

Frequently asked questions

How much does the Aku TP385-DLB weigh?

The unladen weight is 796 kg.

What is the gross vehicle weight of the Aku TP385-DLB?

3,650 kg.

What are the dimensions of the Aku TP385-DLB?

5,670 mm × 2,360 mm.

When was the Aku TP385-DLB built?

Production years: 2014-2026.

What to check before buying

  • Search the frame and welds at the axle mounts — that is where cracks start.
  • Check the brakes and the last inspection in the papers.
  • Work the gross weight against the towing vehicle before buying.
  • Compare the chassis number with the papers.
  • Look at the floor, cover or body from the inside — rust does not show from outside.

A general list for this type of machine — no substitute for an inspection or an appraiser.
