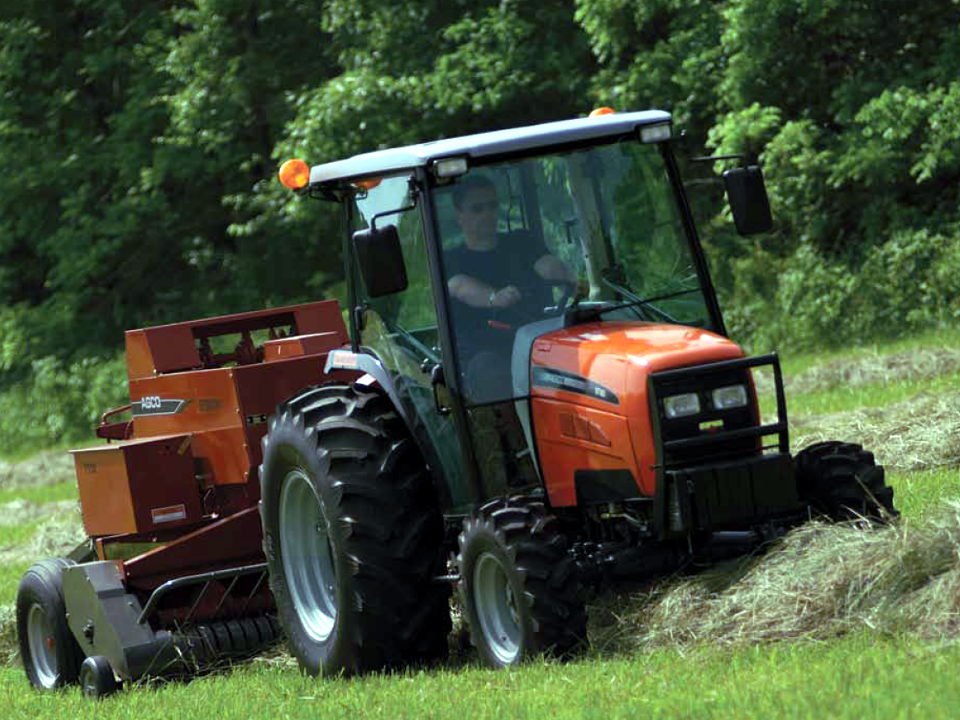

AGCO ST34a 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The AGCO ST34a is a tractor from the AGCO 4WD Tractor series. Power comes from a three-cylinder engine; from 1.5 litres it draws 34 hp (24.6 kW). Rated speed is 2,600 rpm.
Empty, it weighs 1,290 kg.
Within the range, rated power spans from 22.8 to 294 hp; with 33.5 hp, the ST34a sits in the lower third. Directly alongside are the ST28a with 28.8 hp below and the ST41a with 40.7 hp above.
Technical data
Engine
| Power | 33.5 hp (24.6 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,499.4 cm³correct |
| Aspiration | naturalcorrect |
Dimensions and weights
| Ground clearance | 360.2correct |
|---|---|
| Unladen weight | 1,290 kgcorrect |
Drivetrain and chassis
| Gearbox type | 8x8 synchroshuttlecorrect |
|---|---|
| Tyre size | Ag R1correct |
Working data
| Pump flow | 34.4 l/mincorrect |
|---|
Other data
| Height | 2,051.3correct |
|---|
Where this model stands
Power-to-weight ratio: 19.1 kW/t (25 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO ST34a have?
The AGCO ST34a delivers 33.5 hp.
How much does the AGCO ST34a weigh?
The unladen weight is 1,290 kg.
What engine does the AGCO ST34a have?
3 cylinders, 1,499 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
