AGCO LT90
Built: 2004-2006 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

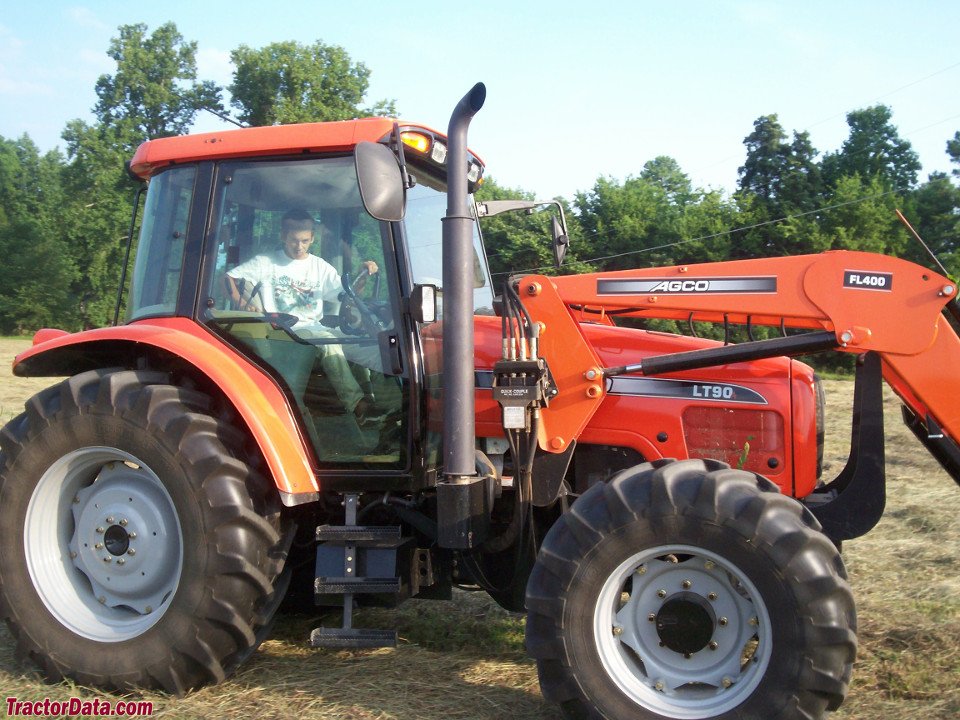

Built in 2004-2006, the AGCO LT90 is a tractor from AGCO. It is powered by a four-cylinder engine producing 63 kW.
Gearbox: Power Shuttle ; Synchro Shuttle (optional).
The fuel specified is diesel. It was replaced by the AGCO LT90A. Within the range, rated power spans from 16.8 to 216 kW; with 63 kW, the LT90 sits in the mid-field. Directly alongside are the GT75A with 61.9 kW below and the LT90A with 67 kW above.
Technical data
Engine
| Engine make | Cumminscorrect |
|---|---|
| Engine model | B seriescorrect |
| Fuel | dieselcorrect |
| Power | 85 hp (63 kW)correct |
| Cylinders | 4correct |
| Displacement | 274.6 cu incorrect |
| Bore | 4.09 in (103,9 mm)correct |
| Stroke | 5.19 in (131,8 mm)correct |
| Naturally aspirated | naturally aspiratedcorrect |
Dimensions and weights
| Length | 165.5 in (4203,7 mm)correct |
|---|---|
| Width | 77 in (2WD); 69.8 in (MFWD)correct |
| Height | 106.5 in (2705,1 mm)correct |
| Wheelbase | 97 in (2463,8 mm)correct |
| Unladen weight | 8, 980 lbs (2WD); 9, 500 lbs (MFWD)correct |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|---|
| Gearbox | Power Shuttle; Synchro Shuttle (optional)correct |
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Clutch | Wet Multi-Disccorrect |
Working data
| Lifting capacity | 7,710 lbs (3497,2 kg)correct |
|---|---|
| Fuel tank capacity | 39 galcorrect |
| PTO speed | 540/1000correct |
| Linkage category | Cat IIcorrect |
Origin and approval
| Plant | Beauvois, Francecorrect |
|---|---|
| Successor | AGCO LT90Acorrect |
Frequently asked questions
How much power does the AGCO LT90 have?
The AGCO LT90 delivers 85 hp.
What engine does the AGCO LT90 have?
4 cylinders, diesel.
When was the AGCO LT90 built?
Production years: 2004-2006.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 29 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
