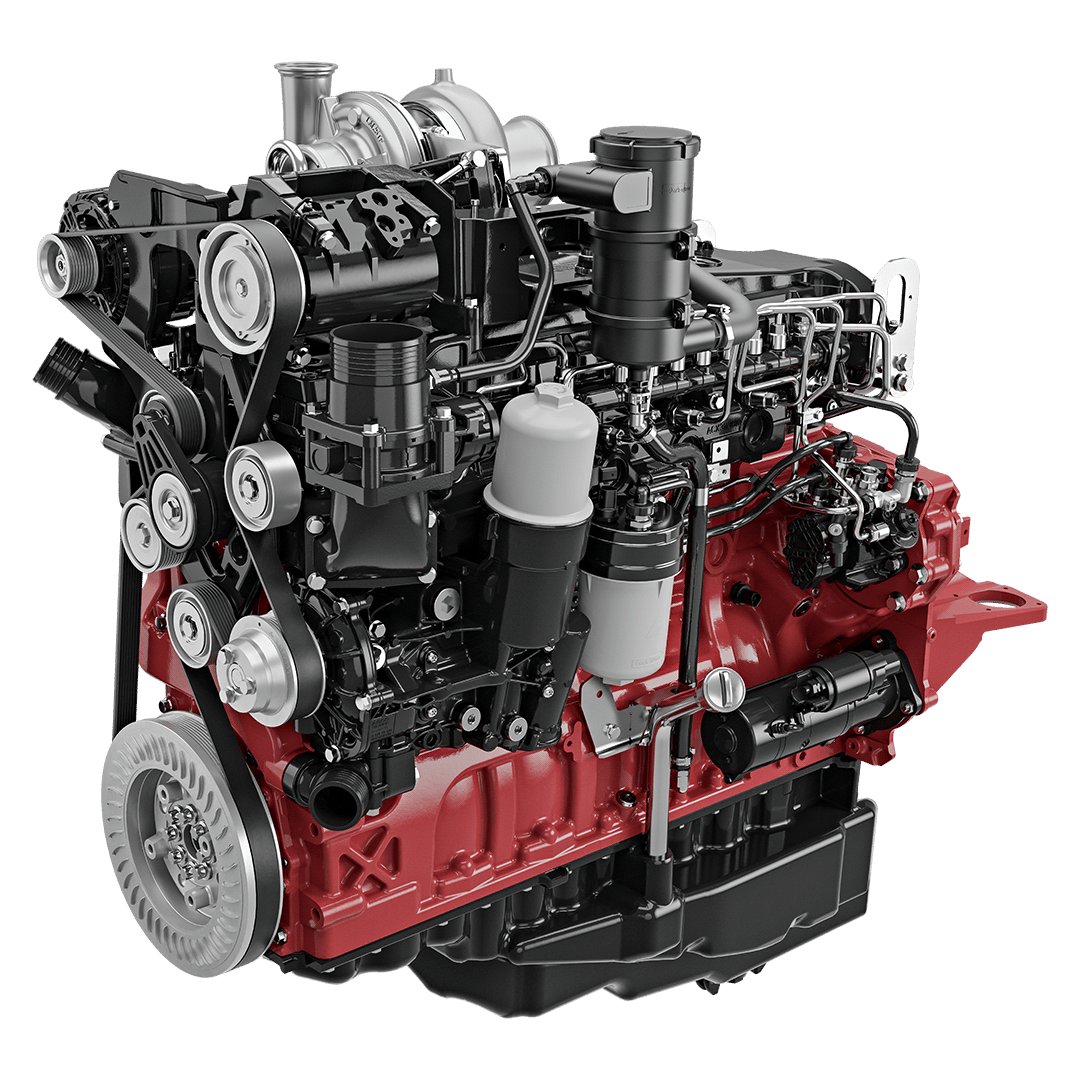

AGCO Power 49AWF.1246

Built: 2017-2025 · Series: Other models

Source: https://www.agcopower.com/bauma-2025/ agcopower.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 49AWF.1246 comes from AGCO Power. Production: 2017-2025. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 110 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the AGCO Power range ranges from 53 to 440 kW; the 49AWF.1246 sits at the bottom of that range with 110 kW. Its immediate neighbours are the 44AWF.1098 below it with 107 kW and the 49 LFTN-D4.1686 above it with 111 kW. 363 AGCO Power models are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine code1correct
Engine familySSIDL06.6G6Dcorrect
Engine familiesSSIDL06.6G6D; RSIDL06.6G6D; LSIDL06.6G6D; JSIDL06.6G6D; PSIDL06.6G6D; MSIDL06.6G6D; HSIDL06.6G6D; NSIDL06.6G6Dcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output110 kWcorrect
Power band56<=kW<130correct
Rated speed2,100 rpmcorrect
Maximum torque625 N·mcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore108 mmcorrect
Stroke134 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version1correct
Built from2017correct
Built to2025correct
Model year from2017correct
Model year to2025correct
Sales regionbothcorrect

Frequently asked questions

How much power does the AGCO Power 49AWF.1246 have?

The AGCO Power 49AWF.1246 delivers 110 kW.

When was the AGCO Power 49AWF.1246 built?

Production years: 2017-2025.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
