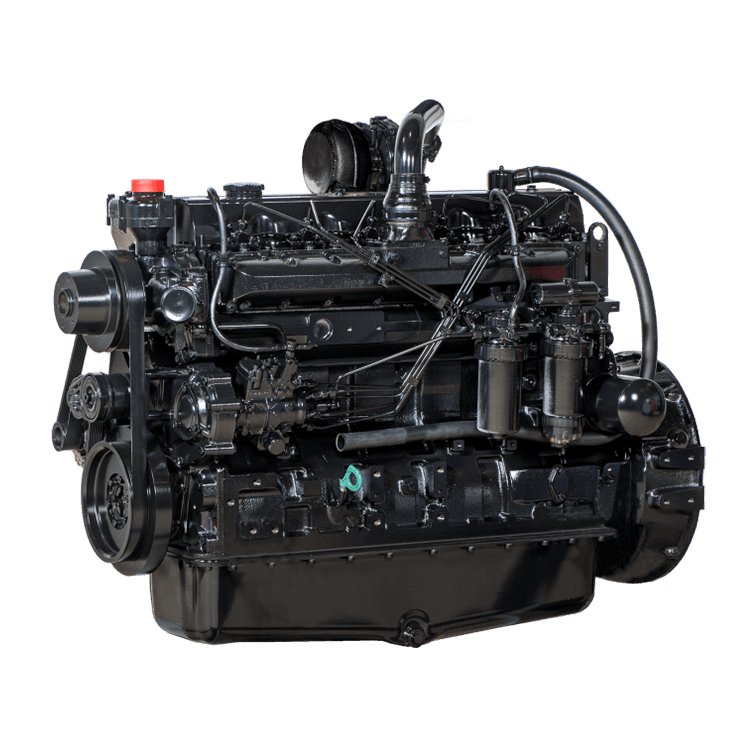

AGCO Power 44 MBTN-D4.1663

Built: 2020-2026 · Series: Other models

More machines from model year 2020

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 44 MBTN-D4.1663 comes from AGCO Power. Production: 2020-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 79 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the AGCO Power range ranges from 53 to 440 kW; the 44 MBTN-D4.1663 sits at the bottom of that range with 79 kW. Its immediate neighbours are the 33 MVTN-D4.2004 below it with 78 kW and the 44 MBTN-D4.1615 above it with 81 kW. 363 AGCO Power models are on record.

AGCO Power – other nonroad diesel engines: the collective page of engines from Linnavuori outside the named ranges, formerly Sisu, 53 to 440 kW from three- to twelve-cylinders, Tier 3 to Tier 4 Final

AGCO Power builds diesel engines in Linnavuori, Finland, having emerged from Sisu Diesel, taken over by AGCO in 1996, mainly for AGCO's own tractor brands Massey Ferguson, Fendt and Valtra as well as for outside manufacturers. This page gathers the engines the register could not assign to a named range; model designations such as 168AWF or 33 LFTN-D4 do not follow a uniformly documented public system, but the EPA engine-family codes such as TSIDL08.0I7C encode displacement (08.0 for 8.0 litres) and cylinder count.

Read on 3 more paragraphs

The register lists here 363 versions with 53 to 440 kW rated output at 1,700 to 2,200 rpm, from three- to twelve-cylinders with 108 to 111 mm bore and 120 to 145 mm stroke, torques from 300 to 2,930 Nm. The 130 to 560 kW power category is the largest with 235 versions, followed by 56 to 130 kW with 100; among the emission stages Tier 4 (Final or Phase-in) prevails with 325 over Interim Tier 4 with 38 versions.

AGCO Power supplies the large tractors of Fendt, Massey Ferguson and Valtra as well as combine harvesters and forage equipment across the AGCO group; as one of the few remaining in-house tractor-engine makers in Europe, the brand competes with outside sourcing from the likes of Deutz or FPT.

On a used purchase, operating hours count, the condition of the turbocharger (waste-gate on the majority, variable-geometry versions on a portion of the engines), the common-rail injection and its injectors, the cooling system and charge-air cooler, and on the newer Tier 4 Final engines the SCR exhaust aftertreatment; parts run through the AGCO brands and their authorised workshops.

Sources: Kennwerte der Modelle AGCO Power (weitere Nonroad-Dieselmotoren), AGCO Power (AGCO, Hersteller)

Technical data

Engine

Engine code1correct
Engine familyPSIDL06.6I7Ccorrect
Engine familiesPSIDL06.6I7C; LSIDL06.6I7C; NSIDL06.6I7C; SSIDL06.6I7C; RSIDL06.6I7C; TSIDL06.6I7Ccorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output79 kWcorrect
Power band56<=kW<130correct
Rated speed2,200 rpmcorrect
Maximum torque470 N·mcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore108 mmcorrect
Stroke120 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version1correct
Built from2020correct
Built to2026correct
Model year from2020correct
Model year to2026correct
Sales regionbothcorrect

Frequently asked questions

How much power does the AGCO Power 44 MBTN-D4.1663 have?

The AGCO Power 44 MBTN-D4.1663 delivers 79 kW.

When was the AGCO Power 44 MBTN-D4.1663 built?

Production years: 2020-2026.
