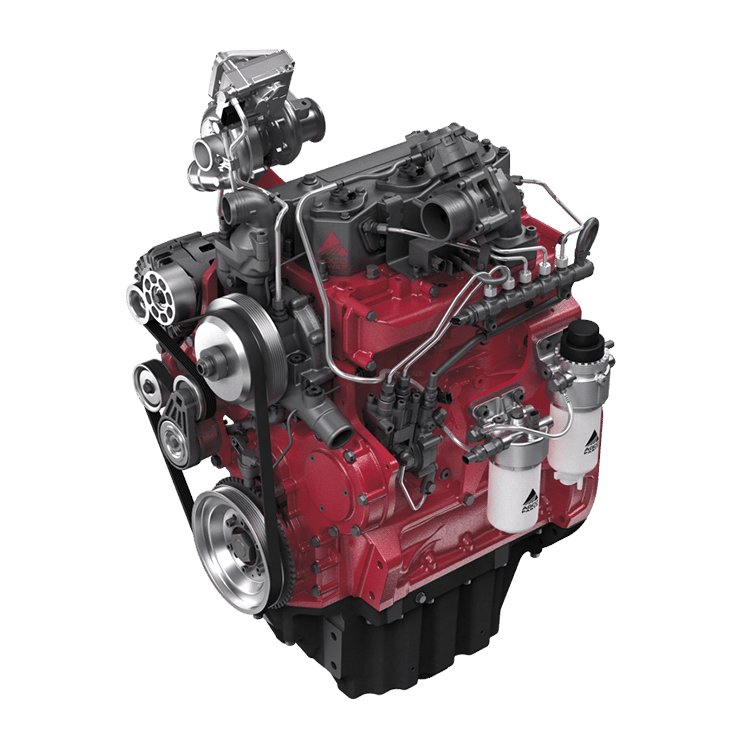

AGCO Power 33AWI.788

Built: 2012-2014 · Series: Other models

Source: https://www.agcopower.com/ agcopower.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 33AWI.788 comes from AGCO Power. Production: 2012-2014. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 72 kW. The engine is turbocharged. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the AGCO Power range ranges from 53 to 440 kW; the 33AWI.788 sits at the bottom of that range with 72 kW. Its immediate neighbours are the 44AWFC.1111 below it with 71 kW and the 44AWFC.1116 above it with 73 kW. 363 AGCO Power models are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine code1correct
Engine familyCSIDL03.3G7Acorrect
Engine familiesCSIDL03.3G7A; DSIDL03.3G7A; ESIDL03.3G7Acorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output72 kWcorrect
Power band56<=kW<75correct
Rated speed2,100 rpmcorrect
Maximum torque465 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore108 mmcorrect
Stroke120 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageInterim Tier 4correct

Origin and approval

Version1correct
Built from2012correct
Built to2014correct
Model year from2012correct
Model year to2014correct
Sales regionbothcorrect

Frequently asked questions

How much power does the AGCO Power 33AWI.788 have?

The AGCO Power 33AWI.788 delivers 72 kW.

When was the AGCO Power 33AWI.788 built?

Production years: 2012-2014.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
