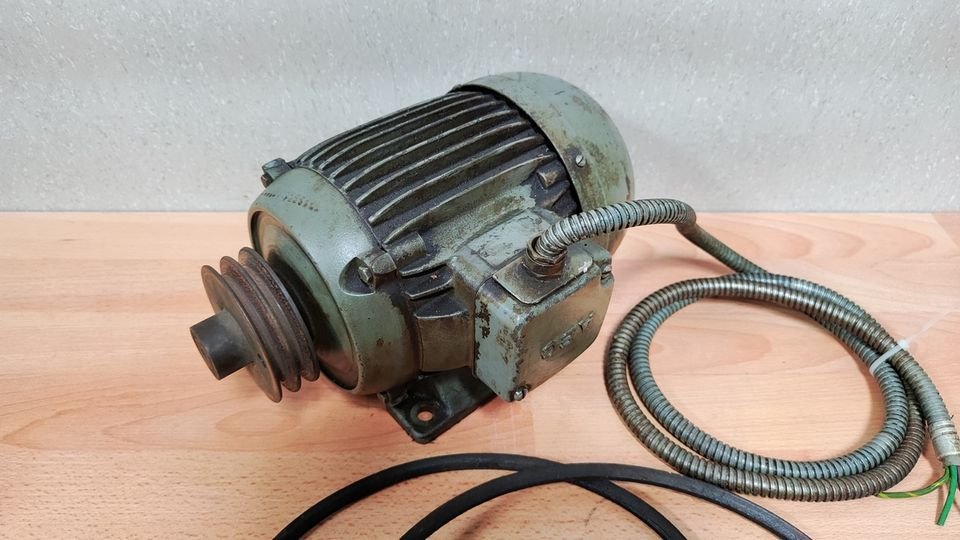

AEG MS
Series: Other models
AEG lists the MS as a three-phase induction motor. The rated output is 0.75 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 400 V. The housing is frame size 90 S in foot-mounted form. The protection class is IP55. The efficiency is 72 per cent at full load, 73 per cent at 75 per cent load and 71 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B14 and B34. The motor is built in Italy. The figures come from the Australian MEPS register under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the AEG range ranges from 0.75 to 160 kW; the MS sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the AM80ZBA4 above it with 1.1 kW. 121 AEG models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.
Technical data
Engine
| Rated output | 0.75 kWcorrect |
|---|
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 6correct |
| Protection class | IP55correct |
| Frame size | 90 S (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B14, B34correct |
| Efficiency at full load | 72 %correct |
| Efficiency at 75 % load | 73 %correct |
| Efficiency at half load | 71 %correct |
Origin and approval
| Country of manufacture | Italycorrect |
|---|---|
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct |
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the AEG MS have?
The AEG MS delivers 0.8 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
