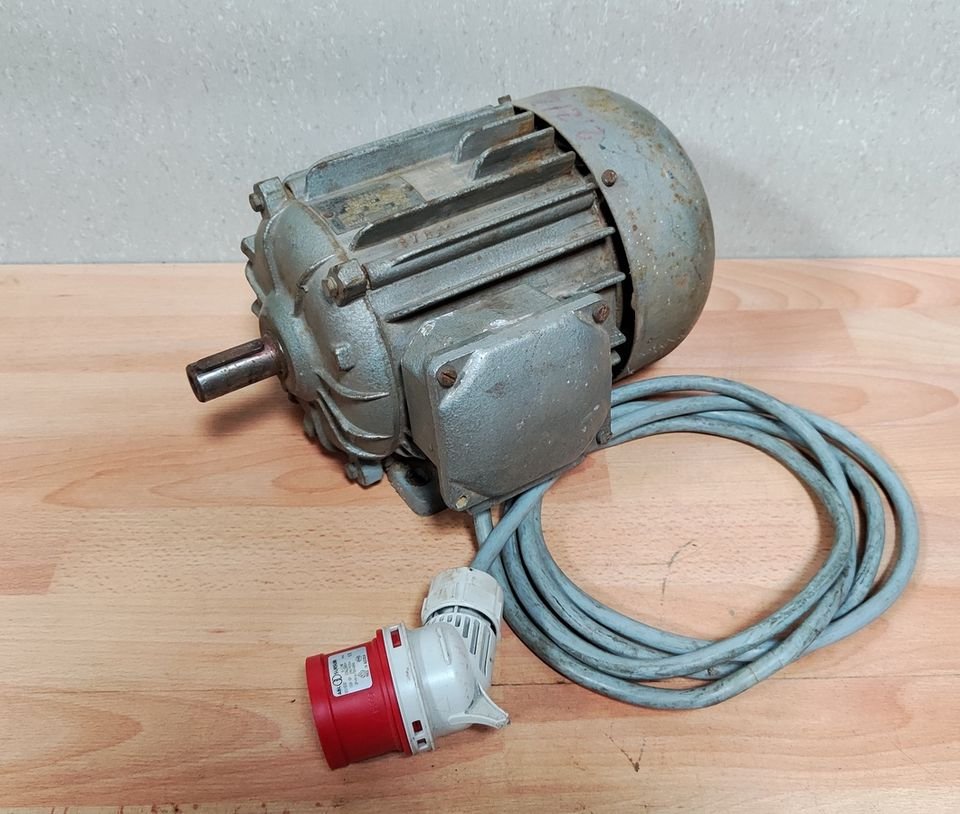

AEG AM315SZE6

Series: Other models

Source: https://food.buzz-club.de/elektro-motor-aeg-weitere-elektron

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The AEG AM315SZE6 is a three-phase induction motor. The rated output is 75 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 400 V. The housing is frame size 315 S in foot-mounted form. The protection class is IP55. The efficiency is 94.3 per cent at full load, 94.4 per cent at 75 per cent load and 93.6 per cent at half load. Mounting arrangements to IEC 60034-7: B3 and B5. The motor is built in Spain. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the AEG range ranges from 0.75 to 160 kW; the AM315SZE6 sits in the middle of that range with 75 kW. Its immediate neighbours are the JM1 250M-4 below it with 55 kW and the AM280MV2 above it with 90 kW. 121 AEG models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output75 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles6correct
Protection classIP55correct
Frame size315 S (foot)correct
Mounting (IEC 60034-7)B3, B5correct
Efficiency at full load94.3 %correct
Efficiency at 75 % load94.4 %correct
Efficiency at half load93.6 %correct

Origin and approval

Country of manufactureSpaincorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the AEG AM315SZE6 have?

The AEG AM315SZE6 delivers 75 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
