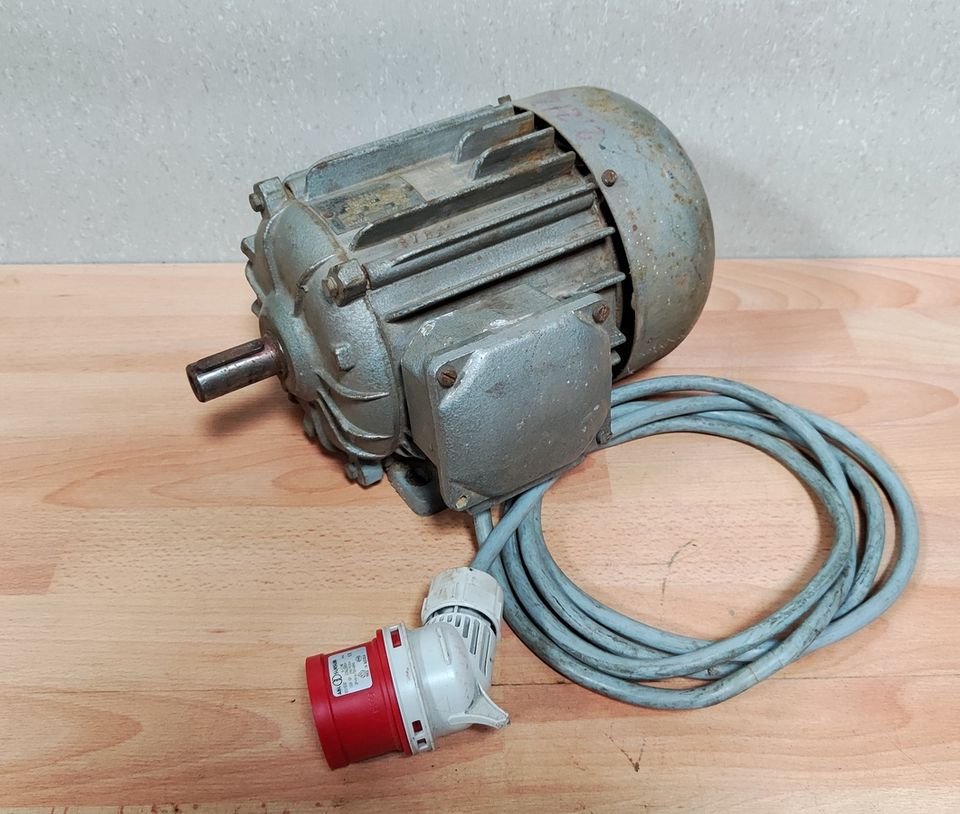

AEG AM160LRA2

Series: Other models

Source: https://food.buzz-club.de/elektro-motor-aeg-weitere-elektron

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The AEG AM160LRA2 is a three-phase induction motor built by AEG. The rated output is 22 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 160 L in foot-mounted form. The protection class is IP55. The efficiency is 91.2 per cent at full load, 91.2 per cent at 75 per cent load and 90.1 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B14 and B34. The motor is built in Spain. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the AEG range ranges from 0.75 to 160 kW; the AM160LRA2 sits at the bottom of that range with 22 kW. Its immediate neighbours are the JM1 180M-4 below it with 18.5 kW and the AM180LRA4 above it with 30 kW. 121 AEG models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output22 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size160 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B14, B34correct
Efficiency at full load91.2 %correct
Efficiency at 75 % load91.2 %correct
Efficiency at half load90.1 %correct

Origin and approval

Country of manufactureSpaincorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the AEG AM160LRA2 have?

The AEG AM160LRA2 delivers 22 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
