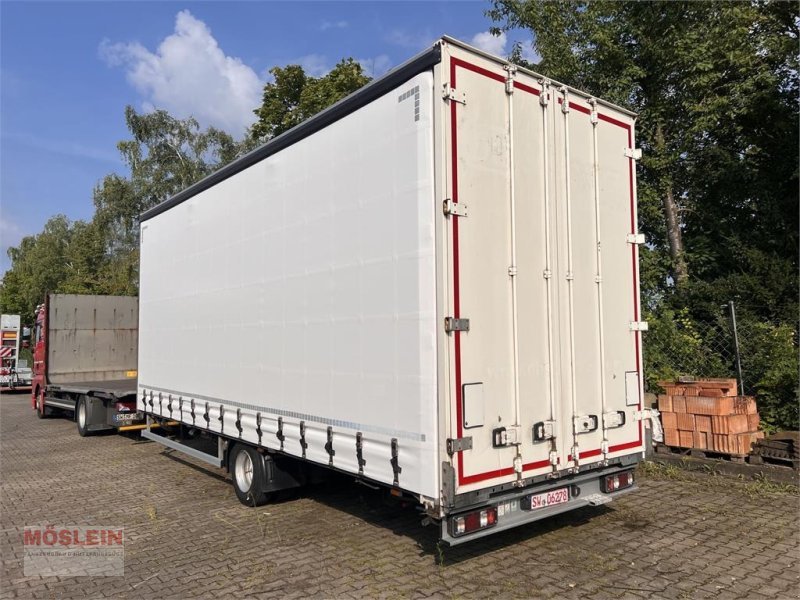

Ackermann VS-F24
Built: 2012-2016 · Series: Other models
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ackermann – other models: semi-trailers and trailers outside the named ranges, PA-F, VA-F and KA-F types, 1.6 to 12 t kerb weight, up to 40 t gross vehicle weight
This page gathers Ackermann trailers and semi-trailers that the register could not assign to a named range. The type codes combine the letters PA-F, VA-F, KA-F, PS-F and VS-F with axle and variant numbers; the wide variety of combinations shows that the type plates mainly reflect internal order and axle codes. Among the model names is also the Dutch word oplegger for semi-trailer, pointing to close trade with the Netherlands.
Read on 3 more paragraphs
The register lists here 38 versions with kerb weights from 1,600 to 12,000 kg and gross vehicle weights from 4,400 to 40,000 kg, at lengths from 4,720 to 14,030 mm and widths from 2,100 to 2,600 mm.
Ackermann vehicles compete in road haulage with the big German semi-trailer builders such as Schmitz Cargobull and Krone, and are found mainly with long-haul hauliers and forwarders using swap bodies. Depending on the body, applications range from the curtainsider through the box body to the low-loader for machinery transport.
When buying used, check the frame and axle mounts for rust and distortion, the condition of axles, suspension and brakes, play in the kingpin, and the tightness of the tarpaulin or body; this also covers the function of the lighting and electrical connectors and, where fitted, the ABS or EBS brake system. Spares for axles and brake systems mostly come through standard suppliers such as BPW or SAF.
Technical data
Dimensions and weights
| Length | 14,000 mmcorrect |
|---|---|
| Width | 2,600 mmcorrect |
| Wheelbase | 9,030 mmcorrect |
| Unladen weight | 10,000 kgcorrect |
| Gross vehicle weight | 35,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Ackermann VS-F24 weigh?
The unladen weight is 10,000 kg.
What is the gross vehicle weight of the Ackermann VS-F24?
35,000 kg.
Up to what speed is the Ackermann VS-F24 approved?
Approved up to 100 km/h.
What are the dimensions of the Ackermann VS-F24?
14,000 mm × 2,600 mm.
When was the Ackermann VS-F24 built?
Production years: 2012-2016.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
