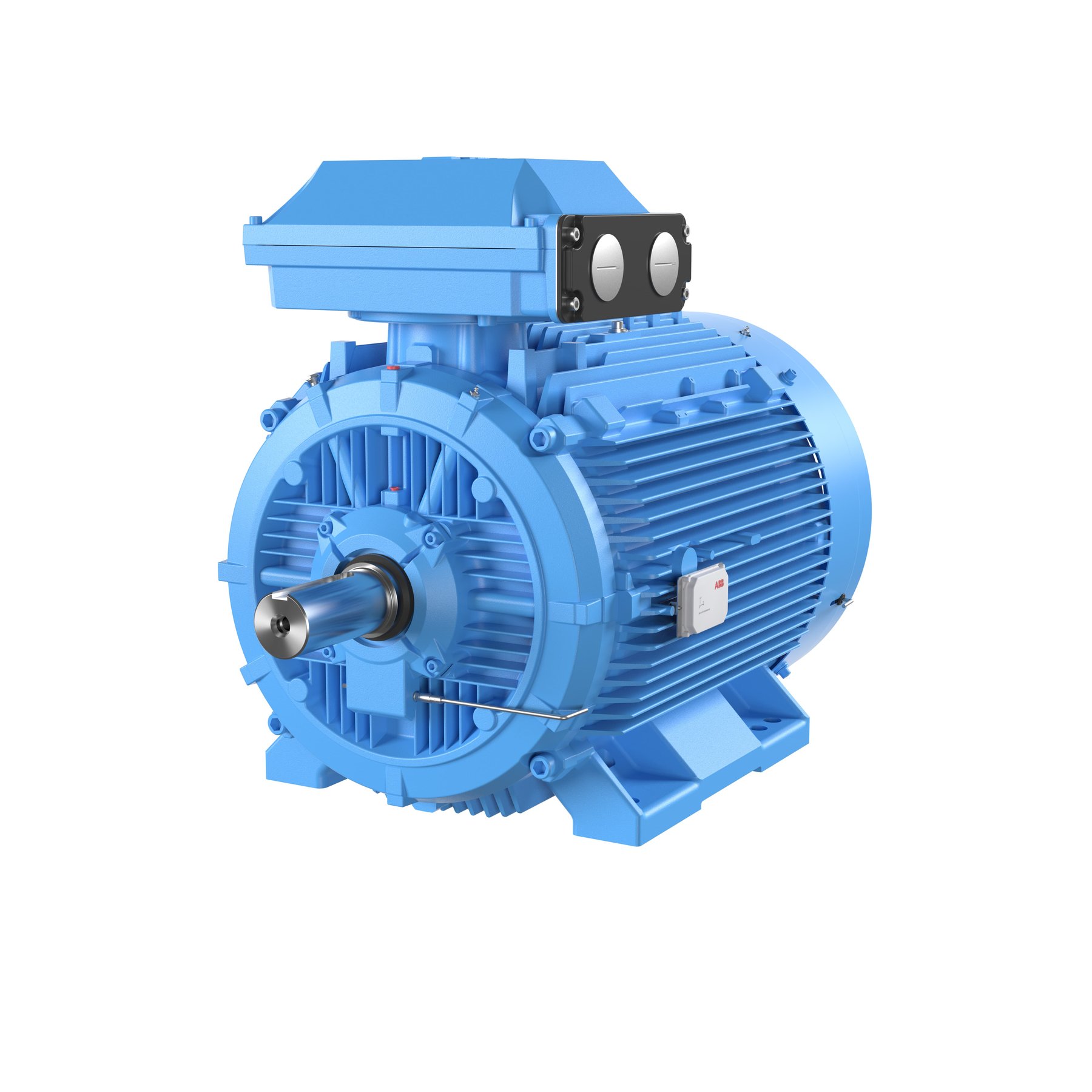

ABB M3KP225SMB4

The ABB M3KP225SMB4 is a three-phase induction motor built by ABB. The rated output is 37 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 225. The protection class is IP55. The efficiency is 93.6 per cent at full load, 93.4 per cent at 75 per cent load and 92.3 per cent at half load. The motor weighs 355 kg. At full load it delivers 239 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Finland. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3KP225SMB4 sits in the lower part of that range with 37 kW. Its immediate neighbours are the M3KP250SMA8 below it with 30 kW and the M2BA 225SMA 2G above it with 45 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.
