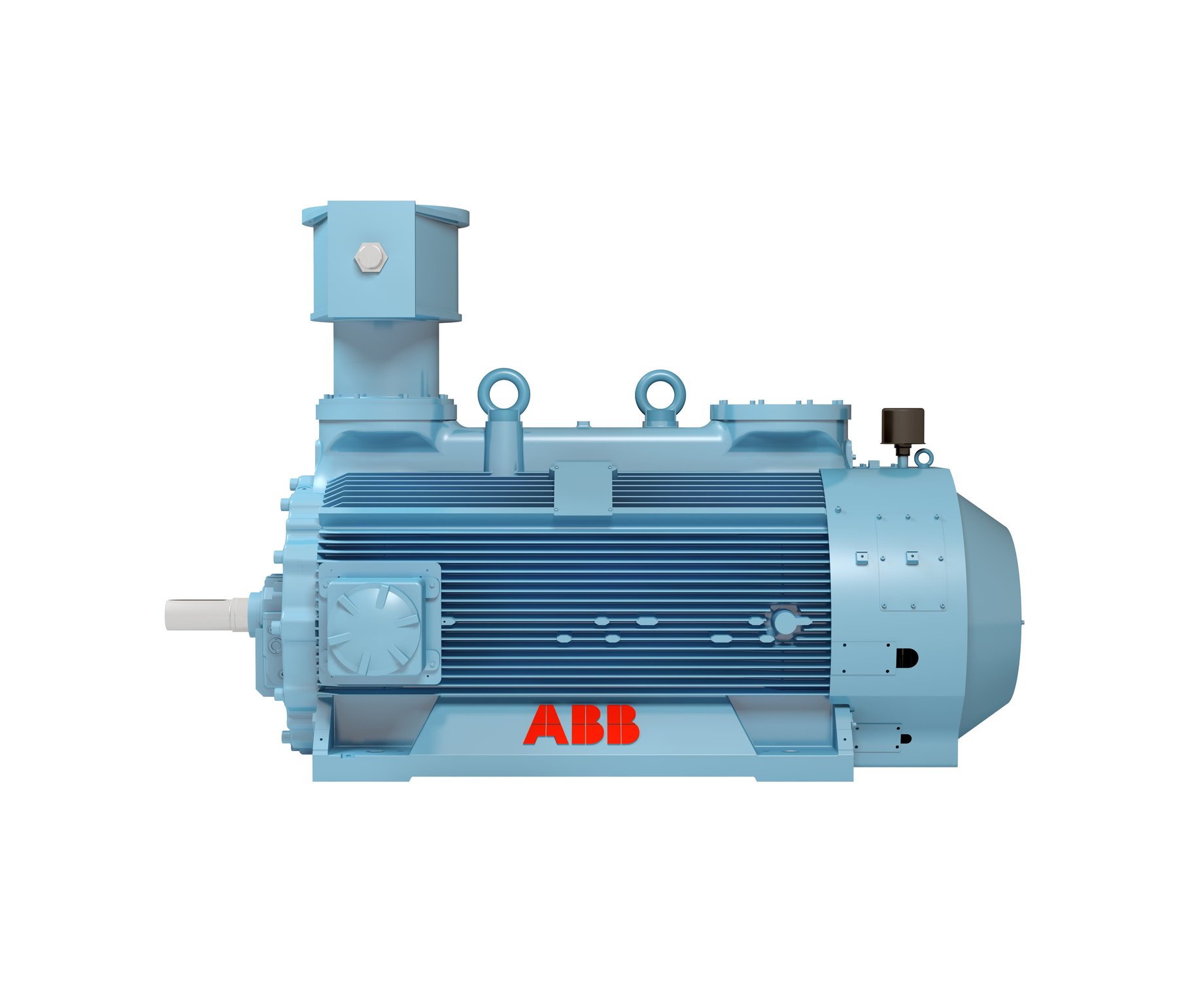

ABB M3KP225SMA8

ABB lists the M3KP225SMA8 as a three-phase induction motor. The rated output is 18.5 kW. The motor is eight-pole, which at 50 Hz gives a synchronous speed of 750 rpm. The rated voltage is 400 V. The housing is frame size 225. The protection class is IP55. The efficiency is 90.5 per cent at full load, 90.7 per cent at 75 per cent load and 89.2 per cent at half load. The motor weighs 335 kg. At full load it delivers 241 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Finland. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3KP225SMA8 sits at the bottom of that range with 18.5 kW. Its immediate neighbours are the M3KP200MLA8 below it with 15 kW and the M2BA 180MLA 2G above it with 22 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 27 verified figures from 1 source are on file.
