ABB M3KP160MLE4

Series: Other models

Source: https://ru.made-in-china.com/co_shiny-control/product_M2bax1

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

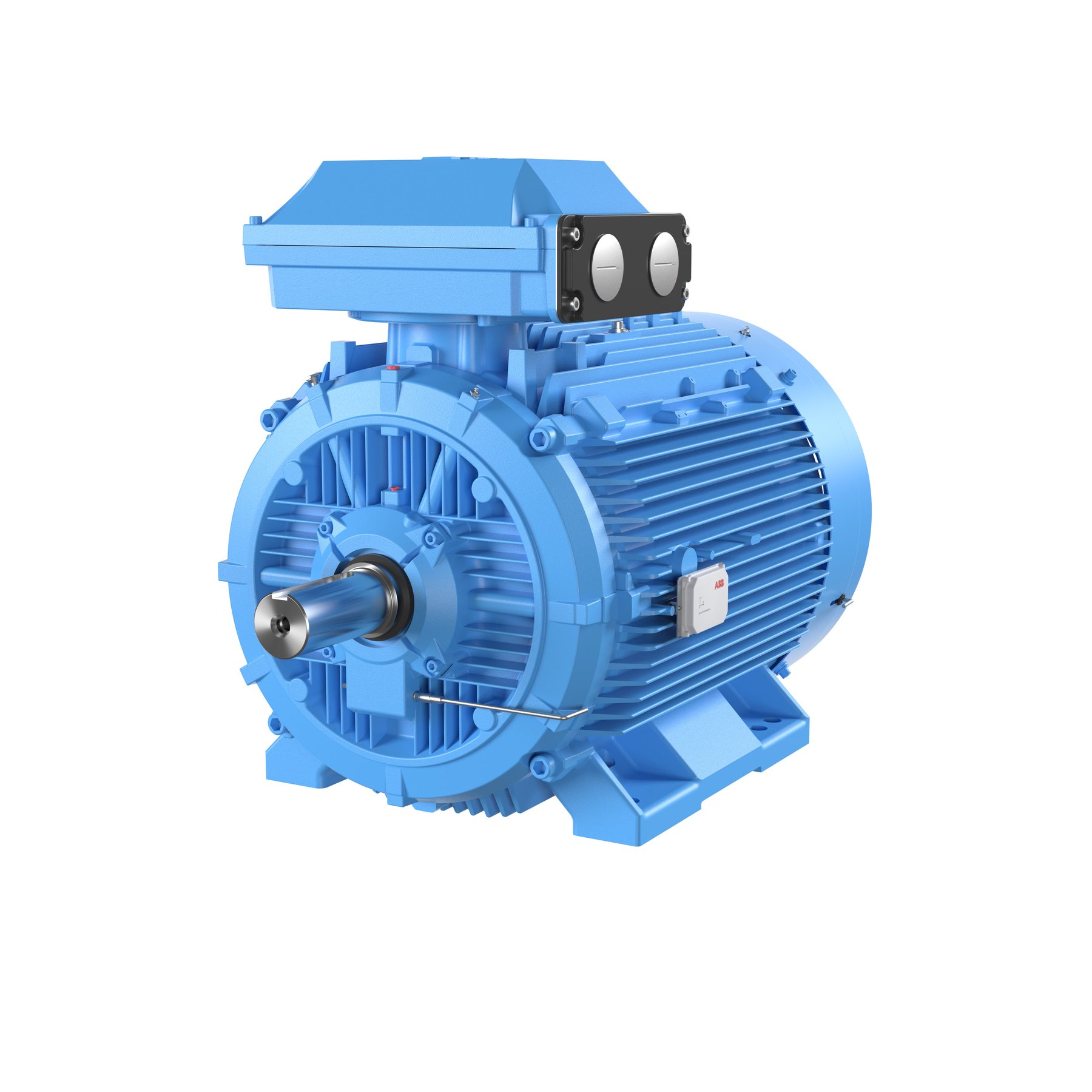

The ABB M3KP160MLE4 is a three-phase induction motor built by ABB. The rated output is 15 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 160. The protection class is IP55. The efficiency is 92 per cent at full load, 92 per cent at 75 per cent load and 91.2 per cent at half load. The motor weighs 189 kg. At full load it delivers 98 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Finland. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3KP160MLE4 sits at the bottom of that range with 15 kW. Its immediate neighbours are the M3KP180MLB8 below it with 11 kW and the M2AA225 above it with 18.5 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output15 kWcorrect

Dimensions and weights

Weight189 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection class55correct
Frame size160correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load92 %correct
Efficiency at 75 % load92 %correct
Efficiency at half load91.2 %correct

Origin and approval

Country of manufactureFinlandcorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M3KP160MLE4 have?

The ABB M3KP160MLE4 delivers 15 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
