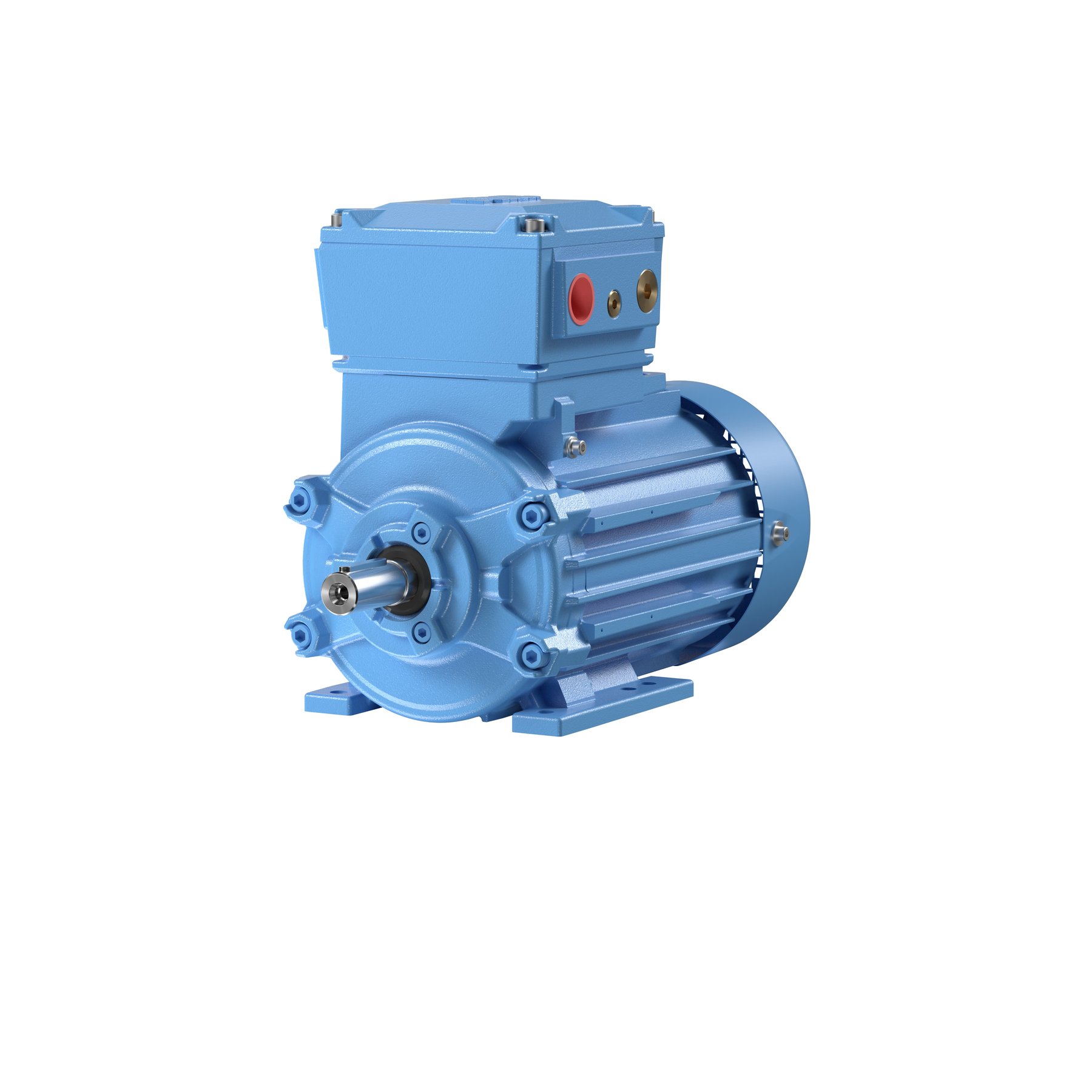

ABB M3JP 90SLC 2

Series: M3JP

Source: https://www.abb.com/global/en/products/3gjp111370-ask

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ABB M3JP 90SLC 2 is a three-phase induction motor from the M3JP series. The rated output is 1.5 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 90. The protection class is IP55, IP56 and IP65. The efficiency is 85.4 per cent at full load, 84.4 per cent at 75 per cent load and 81.1 per cent at half load. The motor is built in Finland. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). The M3JP series covers 197 models. Rated output within it ranges from 0.75 to 184.99 kW; the M3JP 90SLC 2 sits at the bottom of that range with 1.5 kW. Its immediate neighbours are the M3JP 90SLC 4 H below it with 1.1 kW and the M3JP 100LA 4 above it with 2.2 kW. 2141 ABB models across 12 series are on record.

ABB M3JP – flameproof motors (Ex d) for zone 1: cast-iron frame, frame sizes 80 to 355, 0.75 to 185 kW

M3JP is ABB's flameproof motor for zones 1 and 2 – areas where an explosive gas atmosphere is to be expected in normal operation. The protection type Ex d (Ex db under the newer standard) rests on a principle from mining: the enclosure is so strong, and the gaps at shaft and end shields so narrow and long, that an ignition inside is withstood and the flame cannot propagate outward. The letter J in the type code marks exactly this flameproof execution with a cast-iron frame at ABB; the sister type M3KP adds a terminal box in increased safety (Ex de).

Read on 3 more paragraphs

The rest of the type code follows the process motor: IEC frame size, frame length (S, M, L), number of poles, plus H or L for the winding variant. The register holds 197 versions from frame size 80 to 355, 0.75 to 185 kW, two- to eight-pole, with full-load efficiencies from 75.3 to 97.2 % and protection from IP55 to IP66; rated voltages are recorded as 415 to 690 V, manufacturing locations mainly Finland, Poland, India and China.

The figures largely match the M3BP because the active part is the same – the difference lies in the enclosure, which is heavier and more expensive and whose flame paths must not be damaged during maintenance. Certification under ATEX and IECEx states gas group (IIB or IIC) and temperature class.

When buying: Ex d motors may only be operated with certified accessories (cable glands, terminal box), inverter duty needs an explicit release, and any repair to the enclosure requires a certified Ex workshop.

Sources: Kennwerte der Modelle ABB M3JP (MEPS-Registrierungen), ABB Produktinformation Flameproof IE3 motors M3JP/M3KP 80–132, ABB: flameproof motors (Herstellermeldung)

Technical data

Engine

Engine familyM3correct
Engine familiesM3correct
Rated output1.5 kWcorrect

Electrical data

Rated voltage230/400/415 Vcorrect
Number of poles2correct
Protection classIP55, IP56, IP65correct
Frame size90correct
Mounting (IEC 60034-7)B3, B5, B8, B14, B35, V1, V3, V5, V6, V18correct
Efficiency at full load85.4 %correct
Efficiency at 75 % load84.4 %correct
Efficiency at half load81.1 %correct

Origin and approval

Country of manufactureFinlandcorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M3JP 90SLC 2 have?

The ABB M3JP 90SLC 2 delivers 1.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
