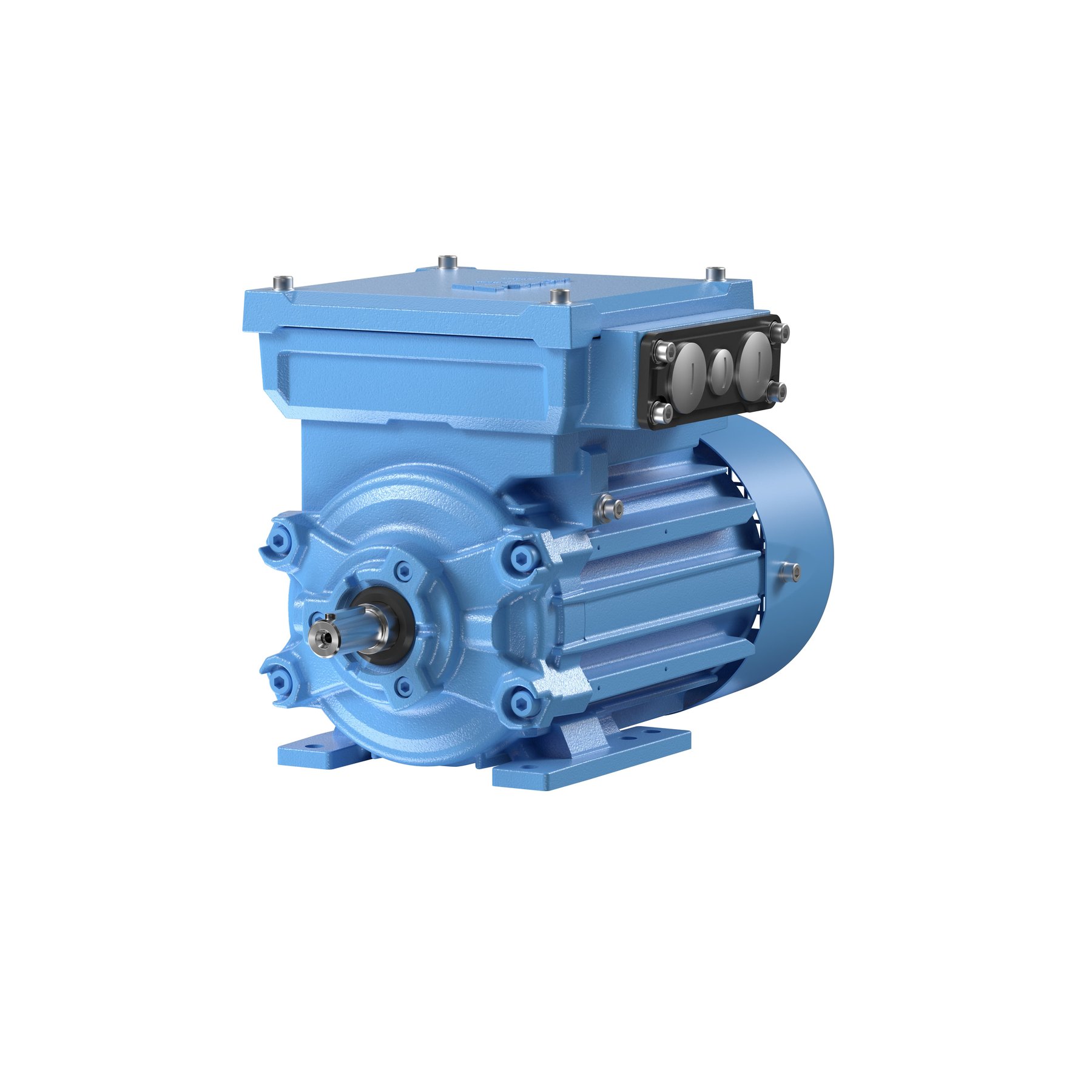

ABB M3GP200MLB4

Series: Other models

Source: https://www.abb.com/global/en/products/3gjp112370-aek

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The M3GP200MLB4 from ABB is a three-phase induction motor. The rated output is 30 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 200. The protection class is IP55. The efficiency is 93.5 per cent at full load, 93.6 per cent at 75 per cent load and 93.1 per cent at half load. The motor weighs 305 kg. At full load it delivers 194 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Finland. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3GP200MLB4 sits in the lower part of that range with 30 kW. Its immediate neighbours are the M3BP160MLE2 below it with 27 kW and the M2BA 200MLB 2G above it with 37 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 28 verified figures from 1 source are on file.

Technical data

Engine

Engine familyM3correct
Engine familiesM3correct
Rated output30 kWcorrect

Dimensions and weights

Weight305 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection class55correct
Frame size200correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load93.5 %correct
Efficiency at 75 % load93.6 %correct
Efficiency at half load93.1 %correct

Origin and approval

Country of manufactureFinlandcorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M3GP200MLB4 have?

The ABB M3GP200MLB4 delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
